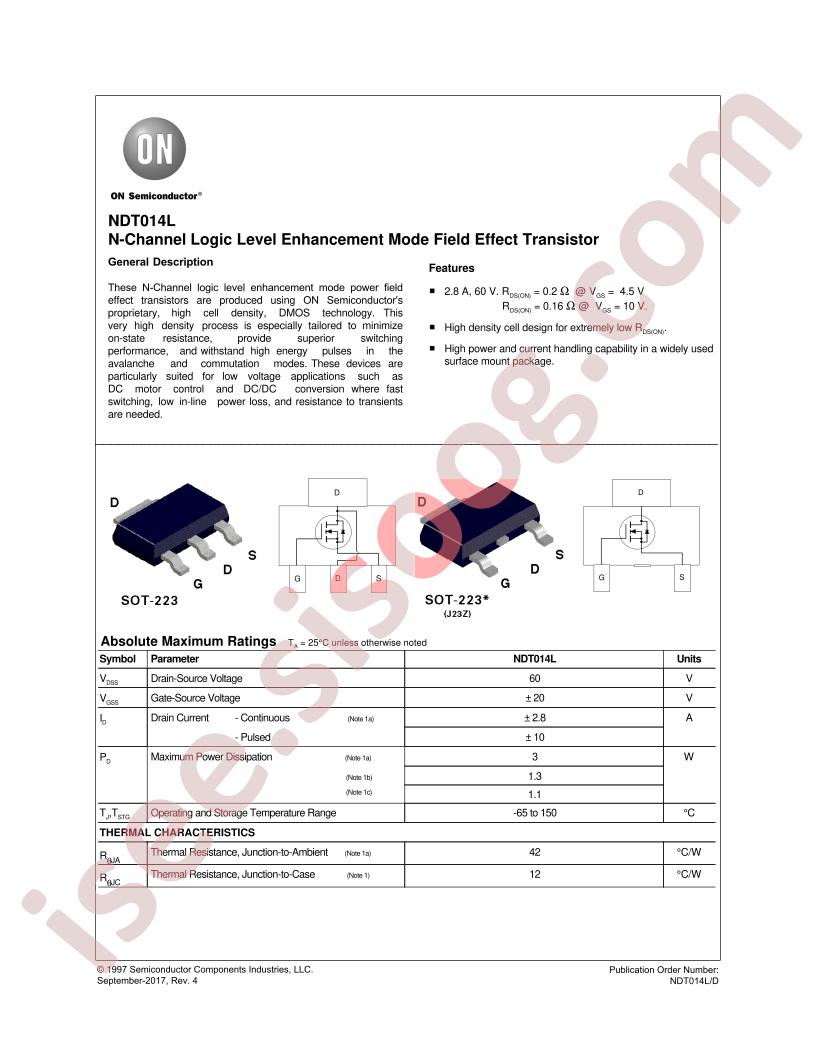

دیتاشیت NDT014L
مشخصات دیتاشیت
| نام دیتاشیت |
NDT014L
|
| حجم فایل |
384.847
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NDT014L
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3W
-
Total Gate Charge (Qg@Vgs):
5nC@4.5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
214pF@30V
-
Continuous Drain Current (Id):
2.8A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
160mΩ@10V,3.4A
-
Package:
SOT-223-4
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
2.8A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
160mOhm @ 3.4A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
5nC @ 4.5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
214pF @ 30V
-
FET Feature:
-
-
Power Dissipation (Max):
3W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-223-4
-
Package / Case:
TO-261-4, TO-261AA
-
Base Part Number:
NDT014
-
detail:
N-Channel 60V 2.8A (Ta) 3W (Ta) Surface Mount SOT-223-4
