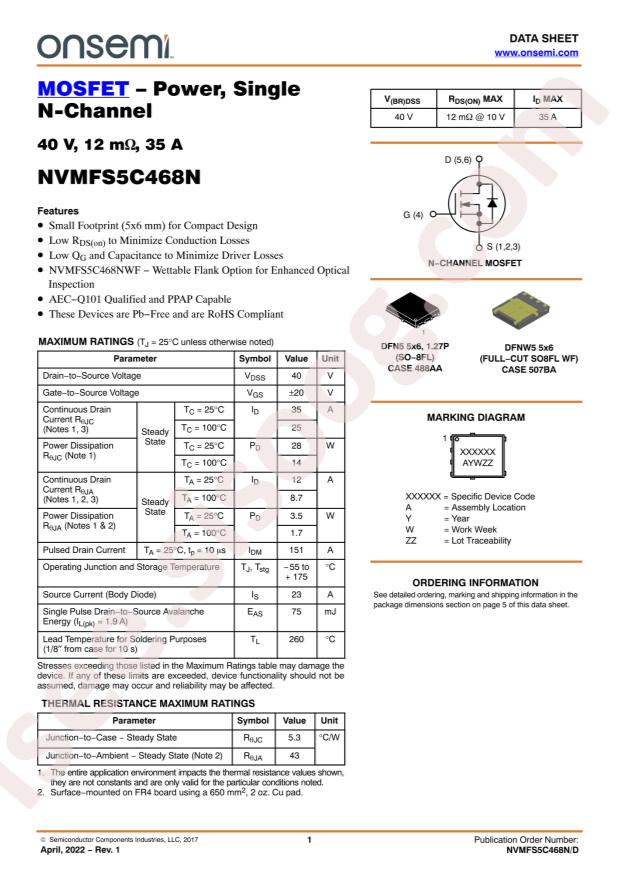

NVMFS5C468NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFS5C468NT1G
|
|
حجم فایل
|
92.555
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFS5C468NT1G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
28W
-
Total Gate Charge (Qg@Vgs):
7.9nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
420pF@25V
-
Continuous Drain Current (Id):
35A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
11pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
10mΩ@10V,10A
-

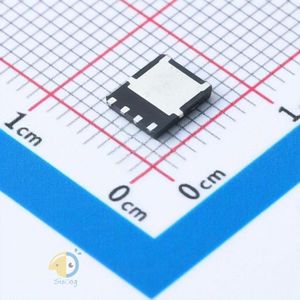

Package:
DFN-5(5.9x4.9)
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Discontinued at Digi-Key
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
12A (Ta), 35A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
12mOhm @ 10A, 10V
-
Vgs(th) (Max) @ Id:
3.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
7.9nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
420pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.5W (Ta), 28W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN, 5 Leads
-
Base Part Number:
NVMFS5
-
detail:
N-Channel 40V 12A (Ta), 35A (Tc) 3.5W (Ta), 28W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
