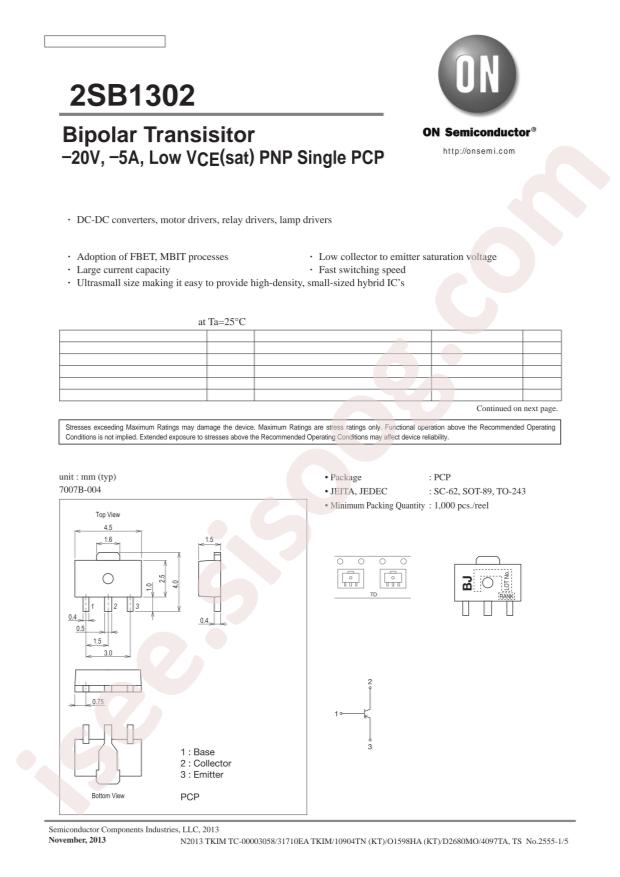

دیتاشیت 2SB1302T-TD-E
مشخصات دیتاشیت
| نام دیتاشیت |
2SB1302
|
| حجم فایل |
282.359
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 2SB1302T-TD-E
-
Transistor Type:
PNP
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
1.3W
-
Transition Frequency (fT):
320MHz
-
DC Current Gain (hFE@Ic,Vce):
100@500mA,2V
-
Collector Cut-Off Current (Icbo):
500nA
-
Collector-Emitter Breakdown Voltage (Vceo):
20V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
250mV@3A,60mA
-
Package:
SOT-89
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
5A
-
Voltage - Collector Emitter Breakdown (Max):
20V
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 60mA, 3A
-
Current - Collector Cutoff (Max):
500nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 500mA, 2V
-
Power - Max:
1.3W
-
Frequency - Transition:
320MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-243AA
-
Supplier Device Package:
PCP
-
Base Part Number:
2SB1302
-
detail:
Bipolar (BJT) Transistor PNP 20V 5A 320MHz 1.3W Surface Mount PCP
