MC74VHC125DTR2G دیتاشیت

مشخصات دیتاشیت

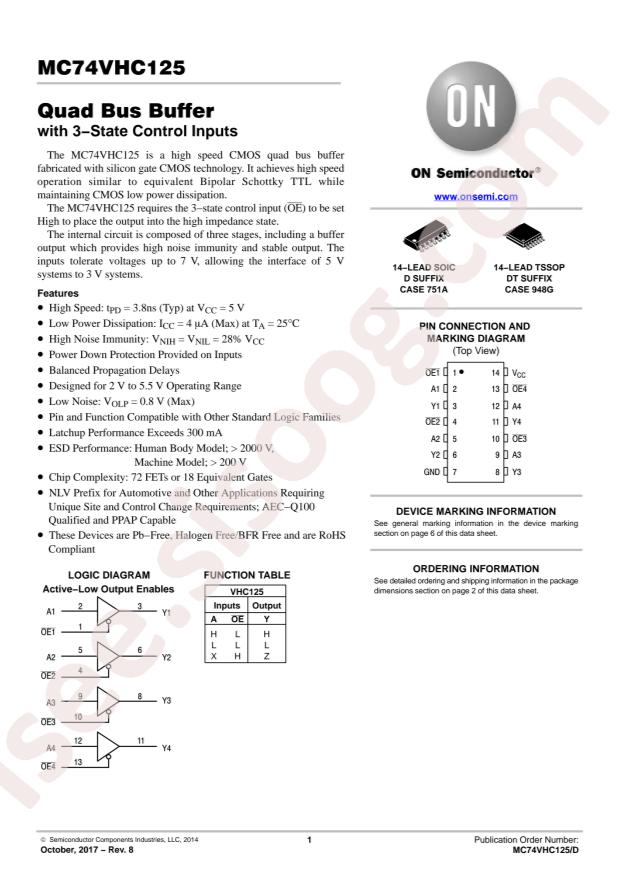

مشاهده دیتاشیت MC74VHC125DTR2G	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: onsemi MC74VHC125DTR2G
Input type: -
output type: Tri-State
Logic Family: 74VHC
Sink Current: 8mA
Source Current: 8mA
Supply Voltage: 2V~5.5V
Number of Elements: 4
Operating Temperature: -55°C~+125°C
Number of Bits per Element: 1
Package: TSSOP-14
Manufacturer: onsemi
Series: 74VHC
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Logic Type: Buffer, Non-Inverting
Current - Output High, Low: 8mA, 8mA
Voltage - Supply: 2V ~ 5.5V
Mounting Type: Surface Mount
Package / Case: 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 14-TSSOP
Base Part Number: MC74VHC125
detail: Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-TSSOP
