- دیتاشیت NRVTSA4100T3G

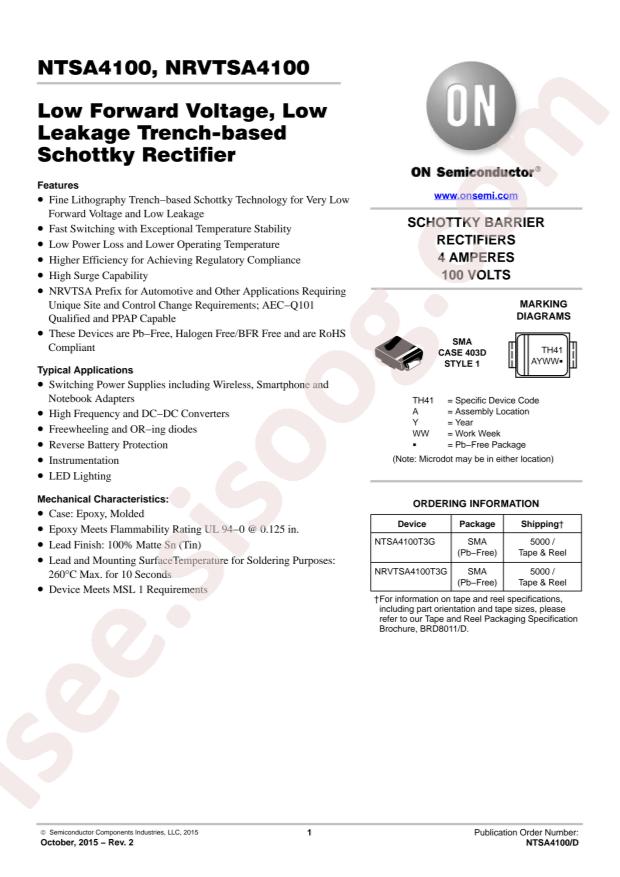

NRVTSA4100T3G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NRVTSA4100T3G |
|---|---|
| حجم فایل | 74.592 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت NRVTSA4100T3G |
دانلود دیتاشیت |
|---|
سایر مستندات
NTSA4100, NRVTSA4100 5 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: onsemi NRVTSA4100T3G
- Diode Configuration: -
- Reverse Voltage (Vr): 100V
- Forward Voltage (Vf@If): 590mV@4A
- Reverse Leakage Current (Ir): 1.3uA@100V
- Average Rectified Current (Io): 4A
- Package: SMA
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100V
- Current - Average Rectified (Io): 4A
- Voltage - Forward (Vf) (Max) @ If: 660mV @ 4A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 25µA @ 100V
- Capacitance @ Vr, F: 54.7pF @ 100V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: NRVTSA4
- detail: Diode Schottky 100V 4A Surface Mount SMA
