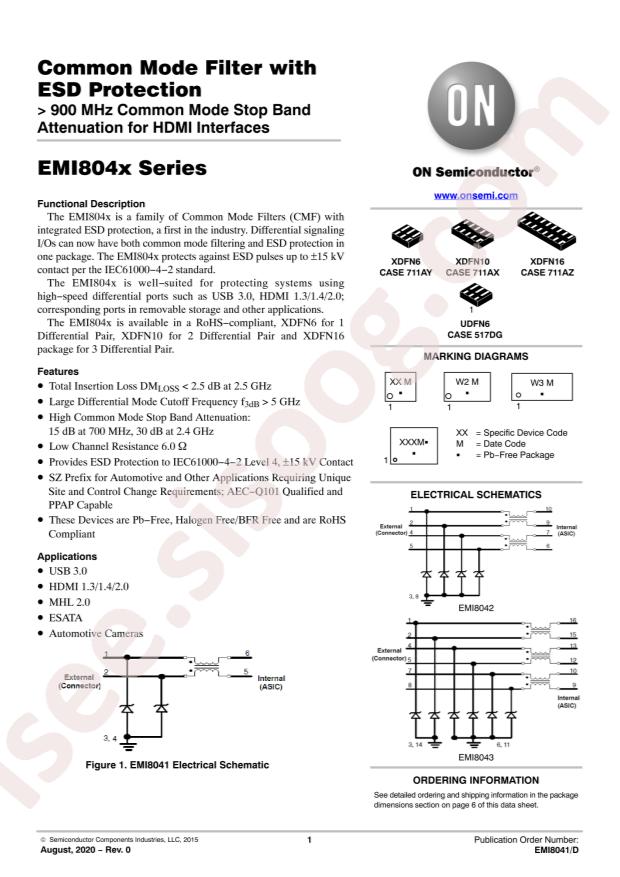

EMI8042MUTAG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
EMI8042MUTAG
|
|
حجم فایل
|
88.692
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Category:
Bead/Filter/EMI Optimization/Common Mode Filters
-
Datasheet:
onsemi EMI8042MUTAG
-
Package:
DFN-10(1.4x2.2)
-
Manufacturer:
onsemi
-
Series:
EMI80
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Filter Type:
Signal Line
-
Number of Lines:
4
-
Current Rating (Max):
100mA
-
DC Resistance (DCR) (Max):
6Ohm (Typ)
-
Voltage Rating - DC:
-
-
Voltage Rating - AC:
-
-
Operating Temperature:
-40°C ~ 85°C
-
Ratings:
-
-
Approval Agency:
-
-
Features:
ESD
-
Mounting Type:
Surface Mount
-
Size / Dimension:
0.098" L x 0.053" W (2.50mm x 1.35mm)
-
Height (Max):
0.020" (0.50mm)
-
Package / Case:
10-XFDFN
-
Base Part Number:
EMI8042
-
detail:
4 Line Common Mode Choke Surface Mount 100mA DCR 6Ohm (Typ)
