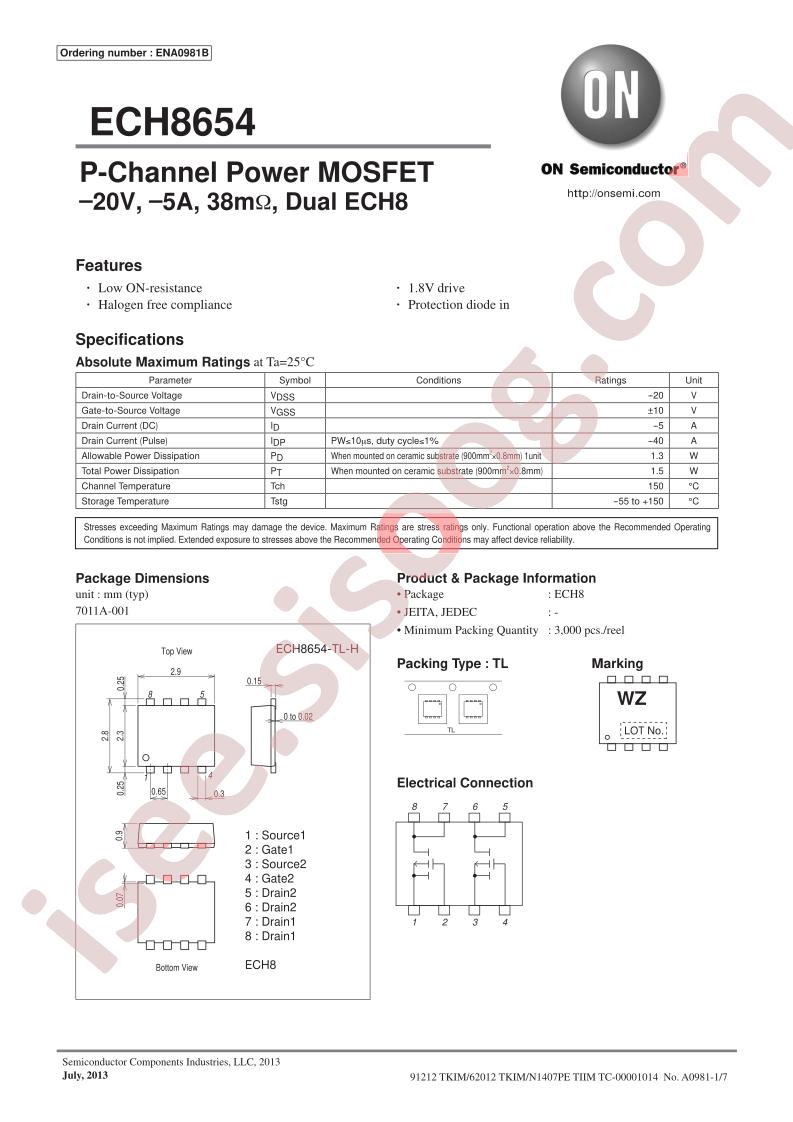

دیتاشیت ECH8654-TL-H
مشخصات دیتاشیت
| نام دیتاشیت |
ECH8654
|
| حجم فایل |
314.429
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
2 P-Channel (Dual)
-
FET Feature:
Logic Level Gate
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
5A
-
Rds On (Max) @ Id, Vgs:
38mOhm @ 3A, 4.5V
-
Vgs(th) (Max) @ Id:
-
-
Gate Charge (Qg) (Max) @ Vgs:
11nC @ 4.5V
-
Input Capacitance (Ciss) (Max) @ Vds:
960pF @ 10V
-
Power - Max:
1.5W
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SMD, Flat Lead
-
Supplier Device Package:
8-ECH
-
Base Part Number:
ECH8654
-
detail:
Mosfet Array 2 P-Channel (Dual) 20V 5A 1.5W Surface Mount 8-ECH
