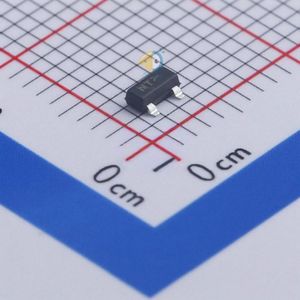

MVSF2N02ELT1G دیتاشیت
مشخصات دیتاشیت
|

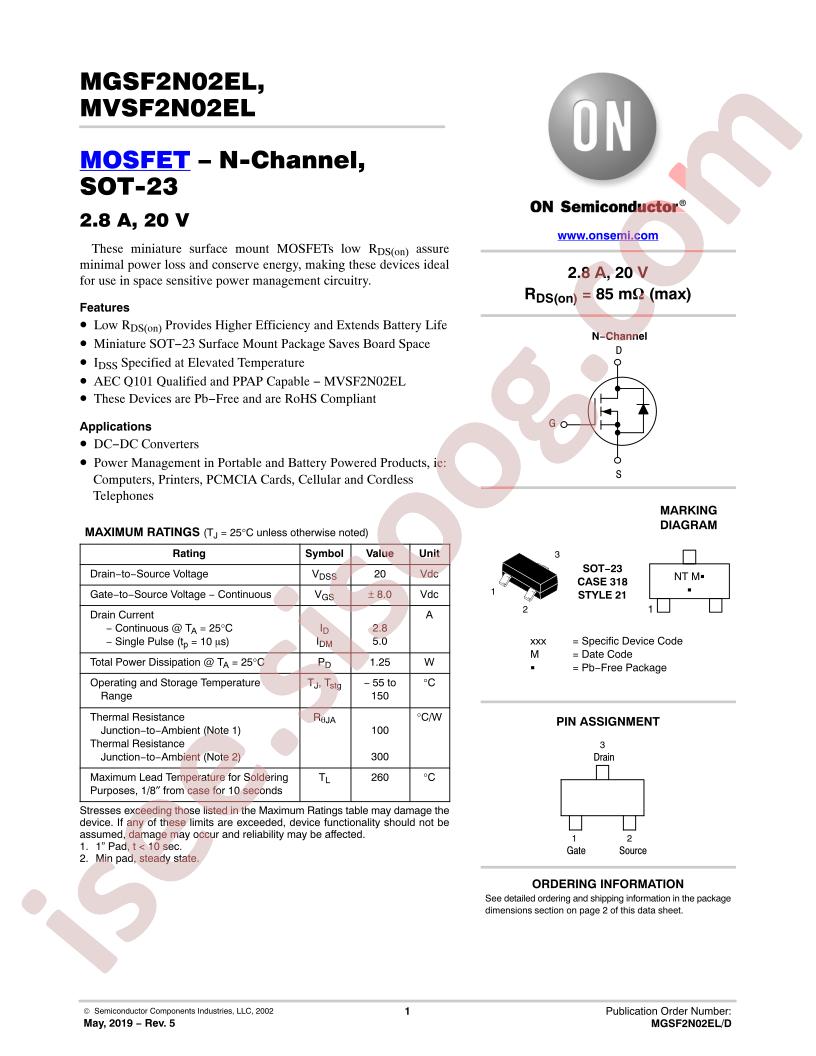

نام دیتاشیت
|
MGSF2N02EL, MVSF2N02EL
|
|
حجم فایل
|
120.988
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Not For New Designs
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
2.8A (Ta)
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Rds On (Max) @ Id, Vgs:
85mOhm @ 3.6A, 4.5V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
3.5nC @ 4V
-
Vgs (Max):
±8V
-
Input Capacitance (Ciss) (Max) @ Vds:
150pF @ 5V
-
FET Feature:
-
-
Power Dissipation (Max):
1.25W (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-3 (TO-236)
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Base Part Number:
MVSF2
-
detail:
N-Channel 20V 2.8A (Ta) 1.25W (Ta) Surface Mount SOT-23-3 (TO-236)
