NVMFD5C478NLT1G دیتاشیت

مشخصات دیتاشیت

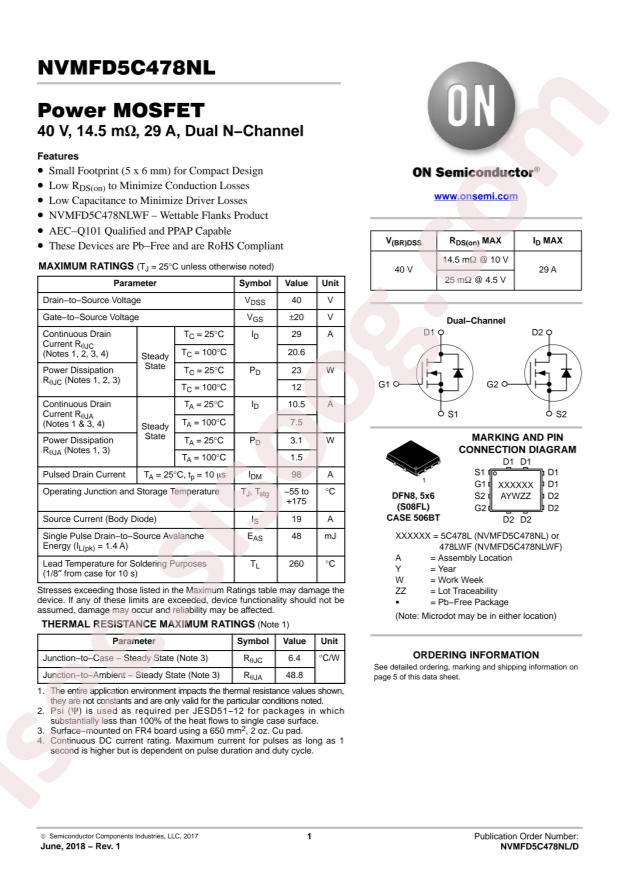

دانلود دیتاشیت NVMFD5C478NLT1G	دانلود دیتاشیت

RoHS: true
Type: 2 N-Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi NVMFD5C478NLT1G
Operating Temperature: -55°C~+175°C@(Tj)
Power Dissipation (Pd): 23W
Total Gate Charge (Qg@Vgs): 3.9nC@4.5V
Drain Source Voltage (Vdss): 40V
Input Capacitance (Ciss@Vds): 420pF@25V
Continuous Drain Current (Id): 29A
Gate Threshold Voltage (Vgs(th)@Id): 2.2V@20uA
Reverse Transfer Capacitance (Crss@Vds): 9pF@25V
Drain Source On Resistance (RDS(on)@Vgs,Id): 12.1mΩ@10V,7.5A
Package: DFN-8(5x6)
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
FET Type: 2 N-Channel (Dual)
FET Feature: Standard
Drain to Source Voltage (Vdss): 40V
Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta), 29A (Tc)
Rds On (Max) @ Id, Vgs: 14.5mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id: 2.2V @ 20µA
Gate Charge (Qg) (Max) @ Vgs: 8.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 420pF @ 25V
Power - Max: 3.1W (Ta), 23W (Tc)
Mounting Type: Surface Mount
Package / Case: 8-PowerTDFN
Supplier Device Package: 8-DFN (5x6) Dual Flag (SO8FL-Dual)
Base Part Number: NVMFD5
detail: Mosfet Array 2 N-Channel (Dual) 40V 10.5A (Ta), 29A (Tc) 3.1W (Ta), 23W (Tc) Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual)
