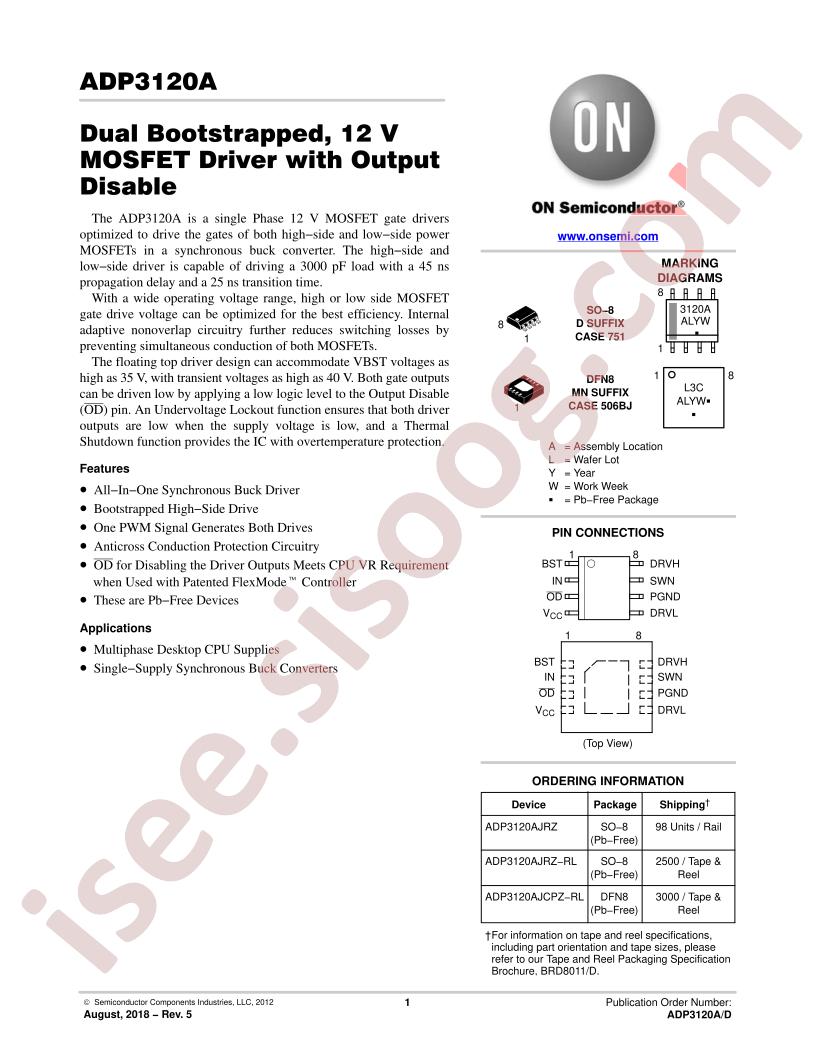

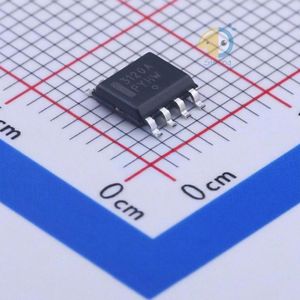

دیتاشیت ADP3120AJRZ-RL
مشخصات دیتاشیت
| نام دیتاشیت |
ADP3120A
|
| حجم فایل |
85.307
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
onsemi ADP3120AJRZ-RL
-
Fall Time:
11ns
-
Load Type:
MOSFET
-
Rise Time:
20ns
-
Supply Voltage:
4.6V~13.2V
-
Number of Drivers:
2
-
Driven Configuration:
Half Bridge
-
Operating Temperature:
-20°C~+150°C@(Tj)
-
Peak Output Current(sink):
-
-
Package:
SOP-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Channel Type:
Synchronous
-
Gate Type:
N-Channel MOSFET
-
Voltage - Supply:
4.6V ~ 13.2V
-
Logic Voltage - VIL, VIH:
0.8V, 2V
-
Current - Peak Output (Source, Sink):
-
-
Input Type:
Inverting, Non-Inverting
-
High Side Voltage - Max (Bootstrap):
35V
-
Rise / Fall Time (Typ):
20ns, 11ns
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
ADP3120
-
detail:
Half-Bridge Gate Driver IC Inverting, Non-Inverting 8-SOIC
