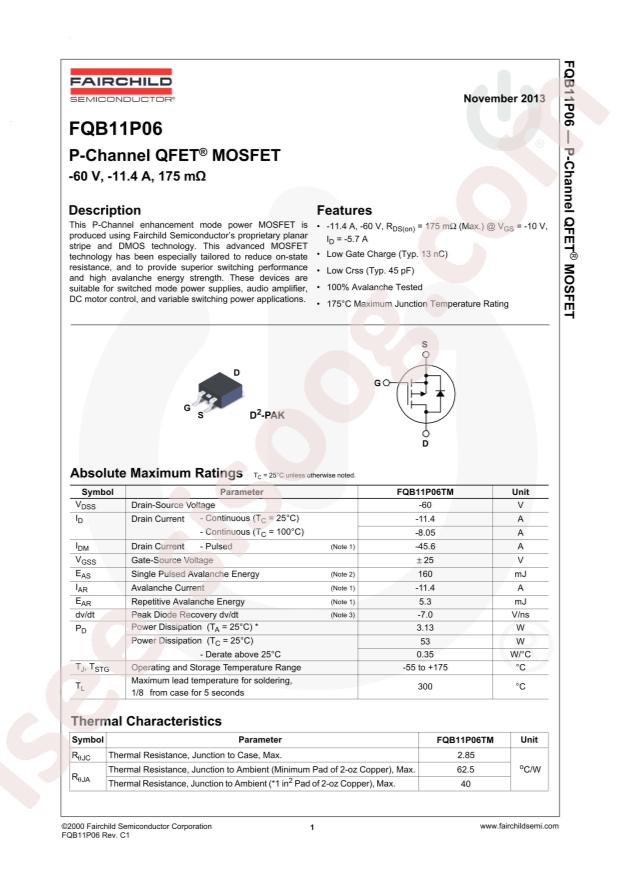

FQB11P06TM دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FQB11P06TM
|
|
حجم فایل
|
75.762
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FQB11P06TM
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
53W
-
Total Gate Charge (Qg@Vgs):
13nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
420pF@25V
-
Continuous Drain Current (Id):
11.4A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250mA
-
Reverse Transfer Capacitance (Crss@Vds):
45pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
140mΩ@10V,5.7A
-
Package:
D2PAK
-
Manufacturer:
onsemi
-
Series:
QFET®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
11.4A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
175mOhm @ 5.7A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
17nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
550pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.13W (Ta), 53W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D²PAK (TO-263AB)
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
FQB1
-
detail:
P-Channel 60V 11.4A (Tc) 3.13W (Ta), 53W (Tc) Surface Mount D²PAK (TO-263AB)
