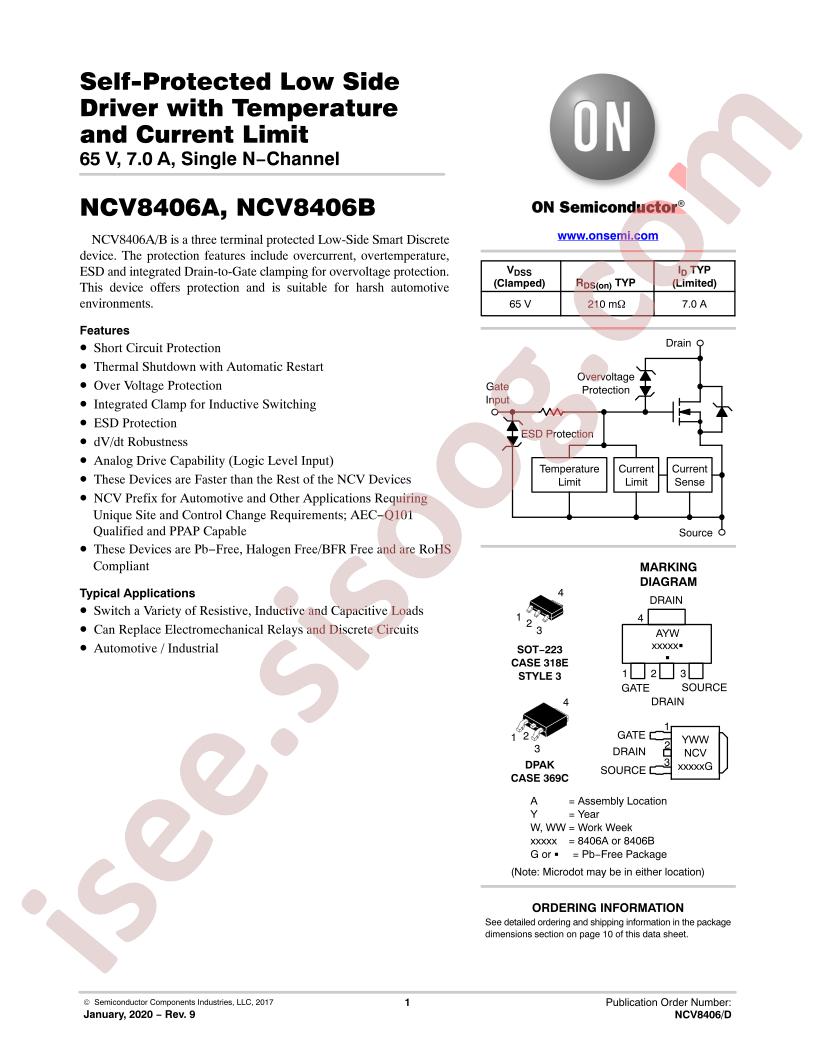

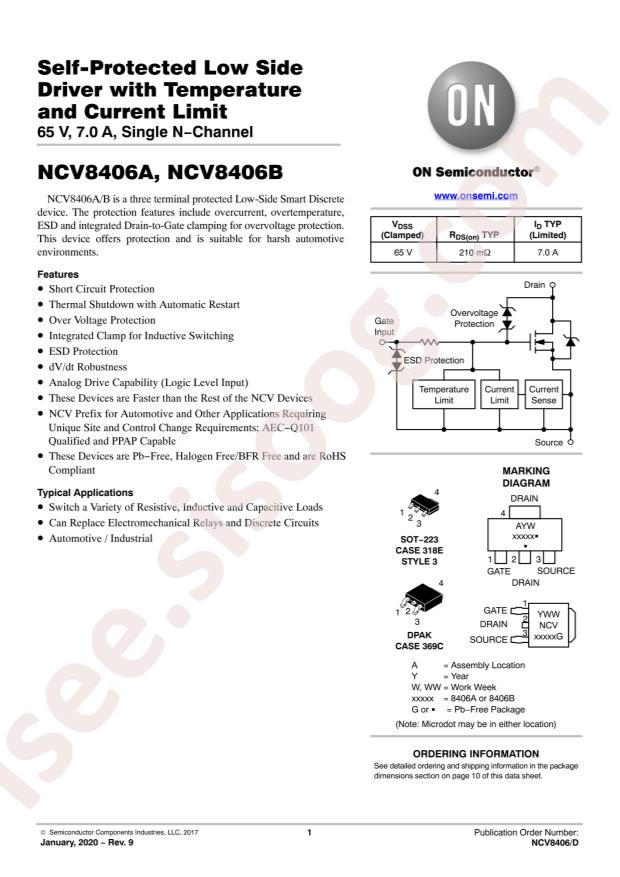

دیتاشیت NCV8406BDTRKG
مشخصات دیتاشیت
| نام دیتاشیت |
NCV8406(A)
|
| حجم فایل |
268.076
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
15
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Power Distribution Switches
-
Datasheet:
onsemi NCV8406BDTRKG
-
Input Voltage:
60V
-
Output Current:
7A
-
Number of Outputs:
1
-
Resistor On-State:
185mΩ
-
Operating Temperature -:
-40°C~+150°C
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Switch Type:
General Purpose
-
Ratio - Input:Output:
1:1
-
Output Configuration:
Low Side
-
Output Type:
N-Channel
-
Interface:
On/Off
-
Voltage - Load:
60V (Max)
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
Current - Output (Max):
7A
-
Rds On (Typ):
185mOhm
-
Input Type:
Non-Inverting
-
Features:
Auto Restart
-
Fault Protection:
Current Limiting (Fixed), Over Temperature, Over Voltage
-
Operating Temperature:
-40°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
NCV8406
-
detail:
Power Switch/Driver 1:1 N-Channel 7A DPAK
