NCP1393BDR2G دیتاشیت

NCP1393BDR2G

مشخصات دیتاشیت

نام دیتاشیت NCP1393BDR2G
حجم فایل 77.086 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

مشاهده دیتاشیت NCP1393BDR2G

دانلود دیتاشیت

سایر مستندات

NCP1393B 16 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: onsemi NCP1393BDR2G
  • Load Type: MOSFET
  • Supply Voltage: 16V
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+150°C@(Tj)

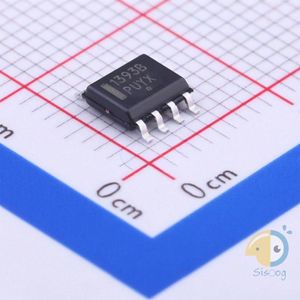

  • Package: SOP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Not For New Designs
  • Output Configuration: Half Bridge (2)
  • Applications: AC Loads, Bulbs, General Purpose
  • Interface: On/Off
  • Technology: Power MOSFET
  • Rds On (Typ): 5mOhm LS, 12mOhm HS
  • Current - Output / Channel: -
  • Current - Peak Output: 1A
  • Voltage - Supply: 16V
  • Voltage - Load: 16V
  • Features: Bootstrap Circuit, Internal Oscillator
  • Fault Protection: Shoot-Through
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: NCP1393
  • detail: Half Bridge (2) Driver AC Loads, Bulbs, General Purpose Power MOSFET 8-SOIC
