FDB9409L-F085 دیتاشیت

FDB9409L-F085

مشخصات دیتاشیت

نام دیتاشیت FDB9409L-F085
حجم فایل 672.947 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

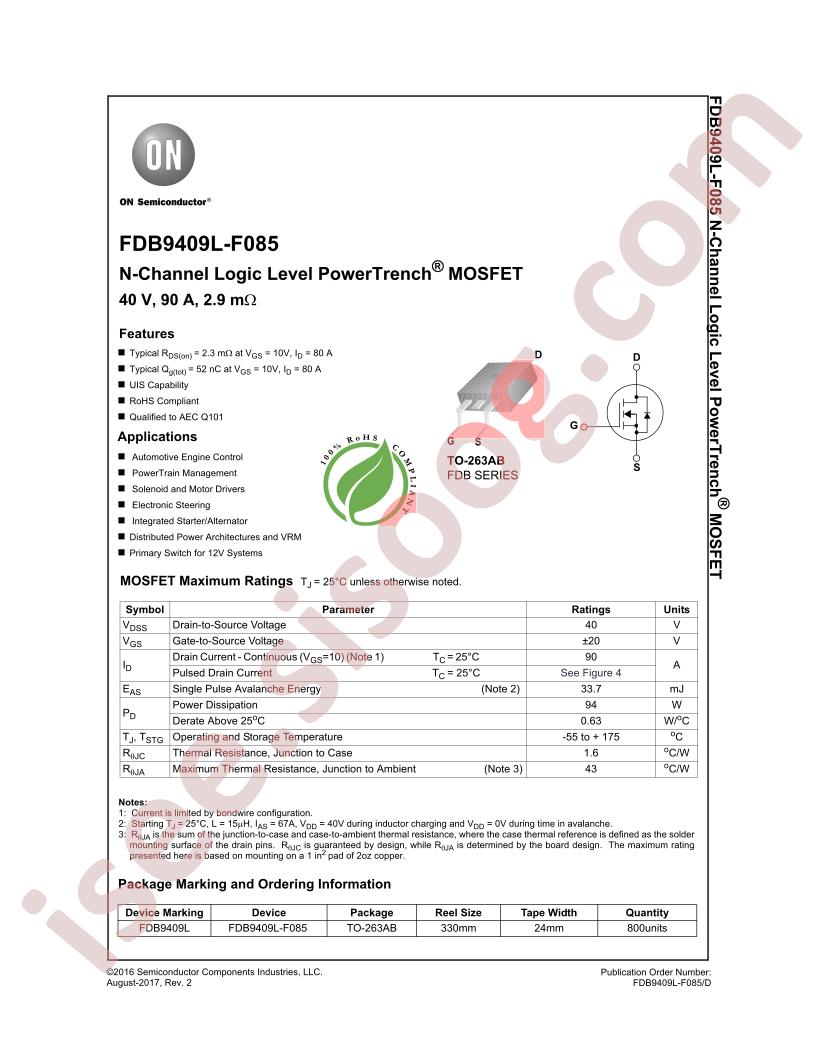

مشاهده دیتاشیت FDB9409L-F085

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FDB9409L-F085
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 94W
  • Total Gate Charge (Qg@Vgs): 52nC@10V
  • Drain Source Voltage (Vdss): 40V
  • Input Capacitance (Ciss@Vds): 3.36nF@20V
  • Continuous Drain Current (Id): 90A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.8V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 42pF@20V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 2.3mΩ@10V,80A
  • Package: TO-263AB
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101, PowerTrench®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40V
  • Current - Continuous Drain (Id) @ 25°C: 90A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 2.9mOhm @ 80A, 10V
  • Vgs(th) (Max) @ Id: 3V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 68nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 3360pF @ 20V
  • FET Feature: -
  • Power Dissipation (Max): 94W (Tj)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D²PAK (TO-263)
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: FDB9409
  • detail: N-Channel 40V 90A (Tc) 94W (Tj) Surface Mount D²PAK (TO-263)
