LM2595DSADJR4G دیتاشیت

مشخصات دیتاشیت

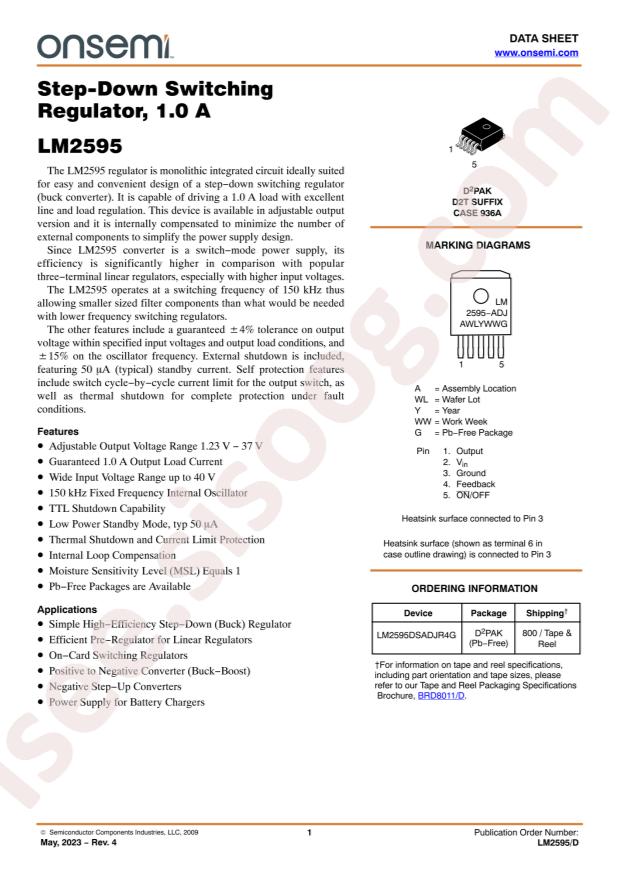

مشاهده دیتاشیت LM2595DSADJR4G	دانلود دیتاشیت

LM2595 25 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;Step-down-Boost
Datasheet: onsemi LM2595DSADJR4G
Output Type: Adjustable
Input Voltage: 4.5V~40V
Output Voltage: 1.23V~37V
Number of Outputs: 1
Switching Frequency: 150kHz
Output Current (Max): 1A
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: D2PAK
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive or Negative
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 1.23V
Voltage - Output (Max): 37V
Current - Output: 1A
Frequency - Switching: 150kHz
Synchronous Rectifier: No
Mounting Type: Surface Mount
Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package: D2PAK-5
Base Part Number: LM259
detail: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 1A TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
