FQB34N20LTM دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FQB34N20LTM
|
|
حجم فایل
|
77.278
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

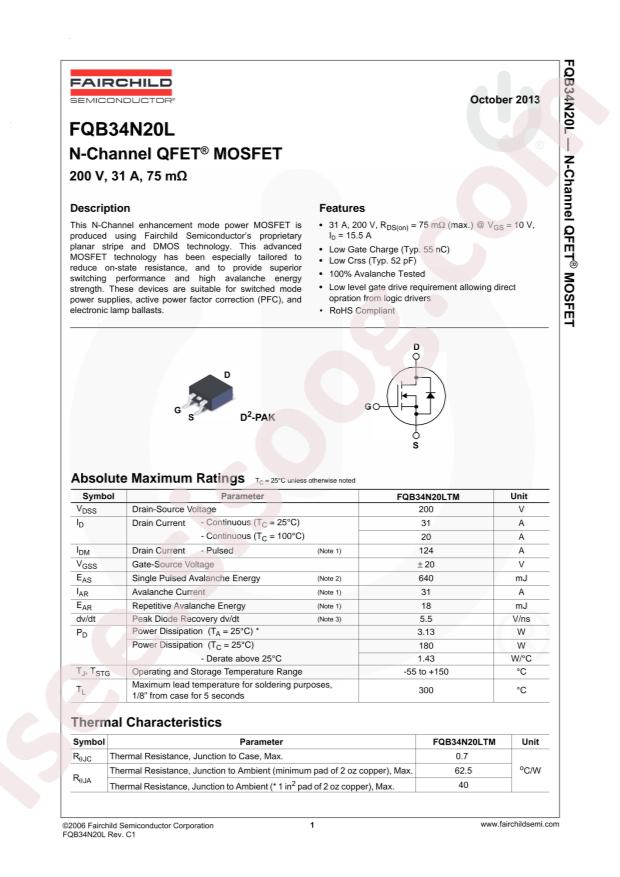

Datasheet:
onsemi FQB34N20LTM
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.13W;180W
-
Total Gate Charge (Qg@Vgs):
55nC@5V
-
Drain Source Voltage (Vdss):
200V
-
Input Capacitance (Ciss@Vds):
3nF@25V
-
Continuous Drain Current (Id):
31A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
52pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
57mΩ@2.5V,15.5A
-
Package:
D2PAK
-
Manufacturer:
onsemi
-
Series:
QFET®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
200V
-
Current - Continuous Drain (Id) @ 25°C:
31A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
75mOhm @ 15.5A, 10V
-
Vgs(th) (Max) @ Id:
2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
72nC @ 5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
3900pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.13W (Ta), 180W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D²PAK (TO-263AB)
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
FQB3
-
detail:
N-Channel 200V 31A (Tc) 3.13W (Ta), 180W (Tc) Surface Mount D²PAK (TO-263AB)
