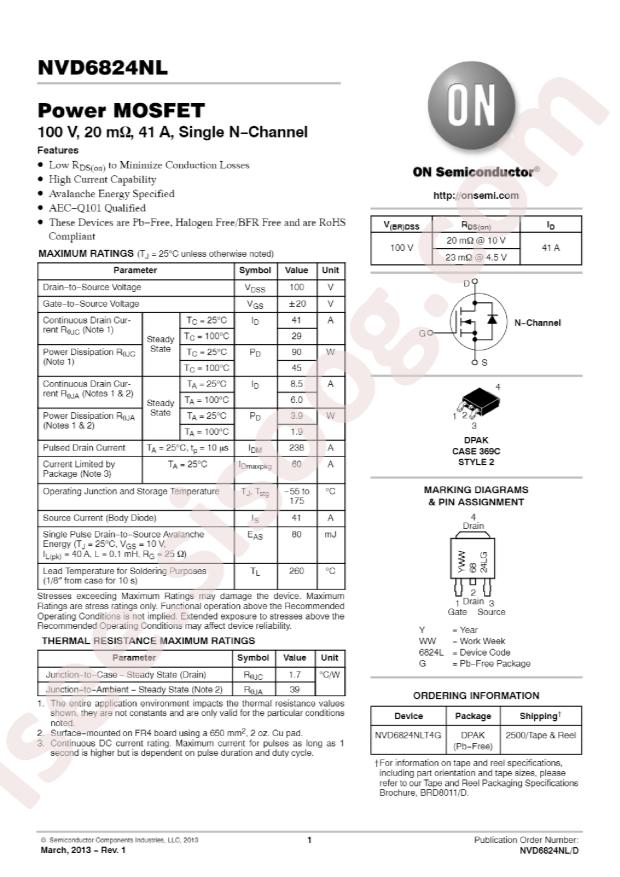

NVD6824NLT4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVD6824NLT4G
|
|
حجم فایل
|
92.057
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVD6824NLT4G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
90W
-
Total Gate Charge (Qg@Vgs):
34nC@4.5V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
3.468nF@25V
-
Continuous Drain Current (Id):
41A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
133pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
16.5mΩ@10V,20A
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
8.5A (Ta), 41A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
20mOhm @ 20A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
66nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
3468pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.9W (Ta), 90W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
NVD682
-
detail:
N-Channel 100V 8.5A (Ta), 41A (Tc) 3.9W (Ta), 90W (Tc) Surface Mount DPAK
