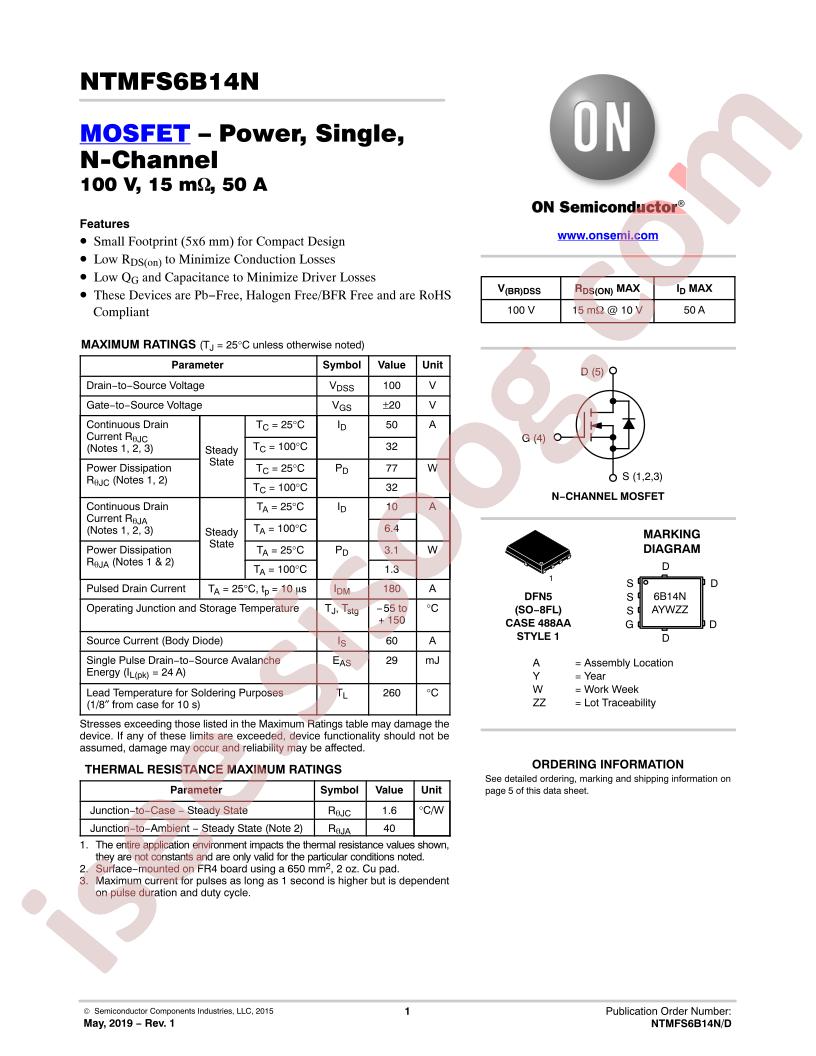

NTMFS6B14NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTMFS6B14N
|
|
حجم فایل
|
131.737
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
100V
-
Current - Continuous Drain (Id) @ 25°C:
10A (Ta), 50A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
-
Rds On (Max) @ Id, Vgs:
15mOhm @ 20A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
20nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1300pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
3.1W (Ta), 77W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN
-
Base Part Number:
NTMFS6
-
detail:
N-Channel 100V 10A (Ta), 50A (Tc) 3.1W (Ta), 77W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
