دیتاشیت MC14538BDWR2G

MC14538B

مشخصات دیتاشیت

نام دیتاشیت MC14538B
حجم فایل 177.996 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت MC14538B

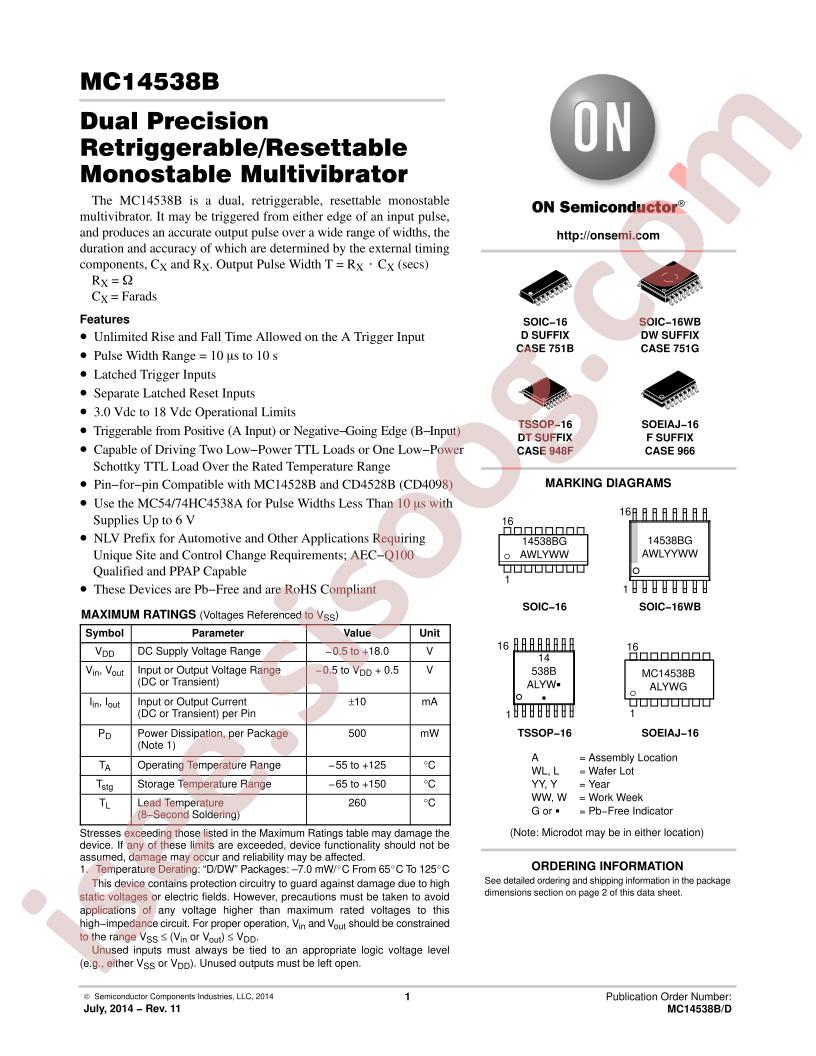

MC14538B Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Monostable Multivibrators
  • Datasheet: onsemi MC14538BDWR2G
  • Input Type: Schmitt Trigger
  • Logic Family: 4000B
  • Sink Current: 8.8mA
  • Source Current: 8.8mA
  • Supply Voltage: 3V~18V
  • Logic Gate Type: Monostable
  • Propagation Delay: 95ns
  • Number Of Channels: 2
  • OperatingTemperature: -55°C~+125°C
  • Package: SOP-16-300mil
  • Manufacturer: onsemi
  • Series: 4000B
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Logic Type: Monostable
  • Independent Circuits: 2
  • Schmitt Trigger Input: Yes
  • Current - Output High, Low: 8.8mA, 8.8mA
  • Voltage - Supply: 3V ~ 18V
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 16-SOIC
  • Base Part Number: MC14538
  • detail: Monostable Multivibrator 95ns 16-SOIC
