NCP1200D40R2G Datasheet

NCP1200D40R2G

Datasheet specifications

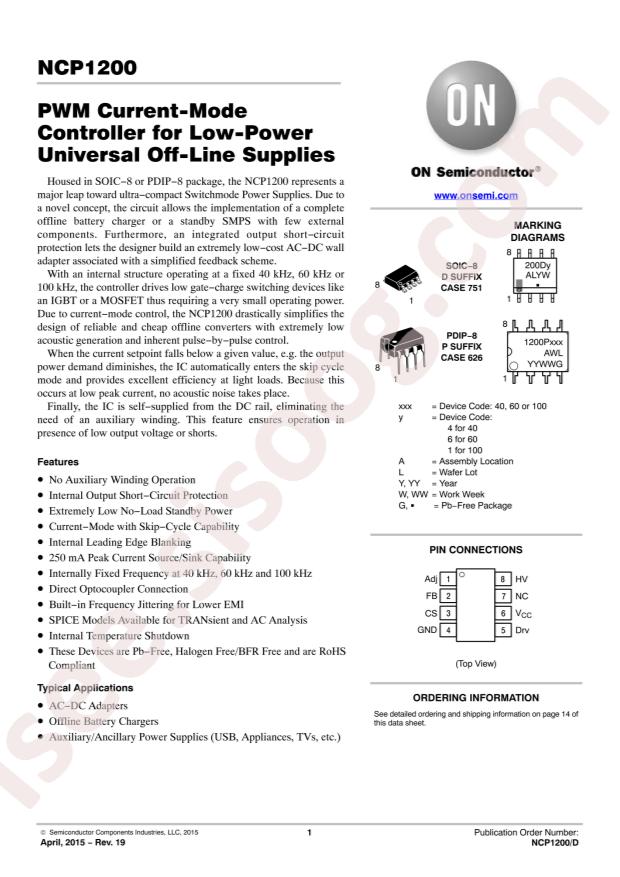

Datasheet's name NCP1200D40R2G
File size 90.937 KB
File type pdf
Number of pages 16

Download Datasheet NCP1200D40R2G

Download Datasheet

Other documentations

NCP1200 Series 16 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Datasheet: onsemi NCP1200D40R2G
  • Package: SOIC-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Output Isolation: Isolated
  • Internal Switch(s): No
  • Voltage - Breakdown: -
  • Topology: Flyback
  • Voltage - Supply (Vcc/Vdd): 16V (Max)
  • Duty Cycle: 80%
  • Frequency - Switching: 40kHz
  • Fault Protection: Current Limiting, Over Load, Short Circuit
  • Control Features: -
  • Operating Temperature: -25°C ~ 125°C (TJ)
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1200
  • detail: Converter Offline Flyback Topology 40kHz 8-SOIC
