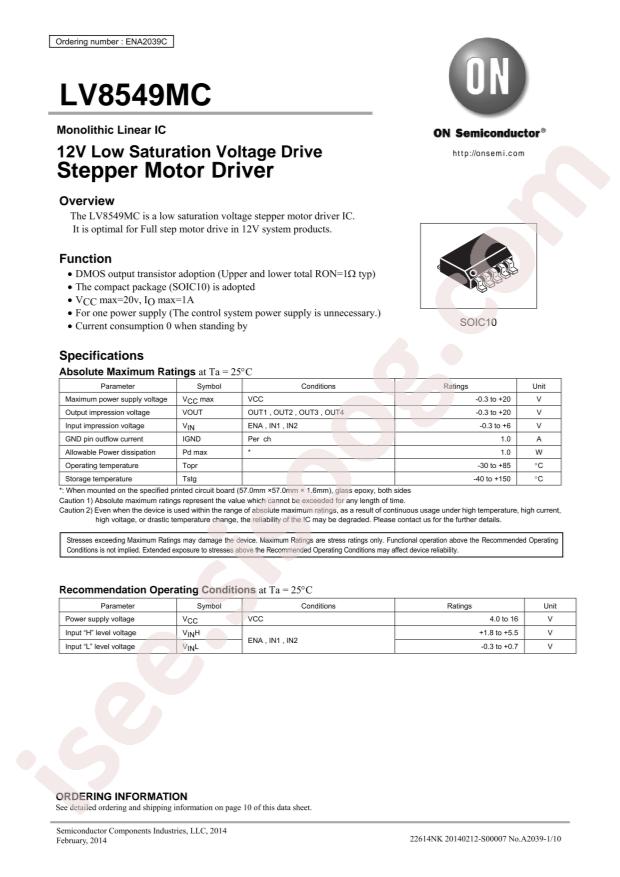

LV8549MC-AH دیتاشیت

LV8549MC-AH

مشخصات دیتاشیت

نام دیتاشیت LV8549MC-AH
حجم فایل 75.53 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت LV8549MC-AH

دانلود دیتاشیت

سایر مستندات

LV8549MC 10 pages

LV8549MC App Note 12 pages

مشخصات فنی

  • RoHS: true
  • Type: -
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: onsemi LV8549MC-AH
  • Interface: Parallel
  • Output Current: 1A
  • Supply Voltage: 4V~16V
  • Operating Temperature: -30°C~+85°C@(Ta)
  • Package: SOP-10-1mm
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: -
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Technology: Power MOSFET
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 1A
  • Voltage - Supply: 4V ~ 16V
  • Voltage - Load: 4V ~ 16V
  • Mounting Type: Surface Mount
  • Package / Case: 10-SOP (0.154", 3.90mm Width)
  • Supplier Device Package: 10-SOIC
  • Base Part Number: LV854
  • detail: Bipolar Motor Driver Power MOSFET Parallel 10-SOIC
