دیتاشیت LB11870-TRM-E

LB11870

مشخصات دیتاشیت

نام دیتاشیت LB11870
حجم فایل 196.339 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت LB11870

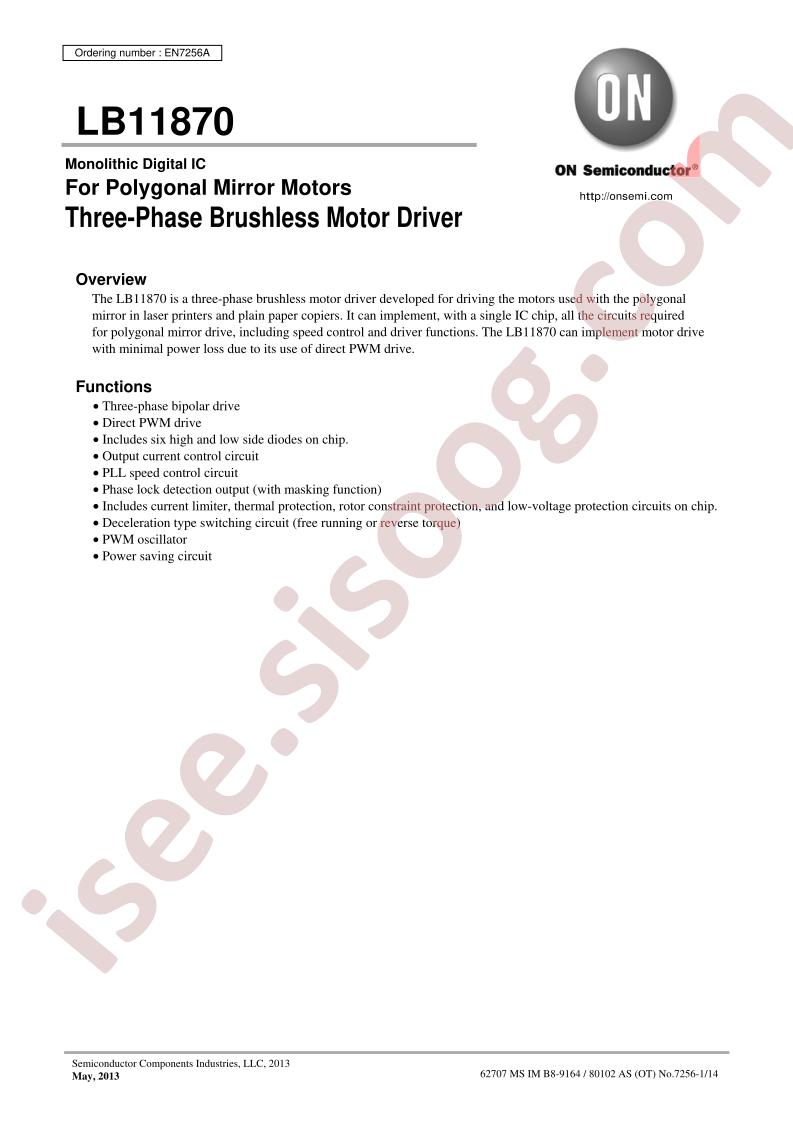

LB11870 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (3)
  • Interface: PWM
  • Technology: Bipolar
  • Step Resolution: -
  • Applications: Polygonal Mirror
  • Current - Output: 2.3A
  • Voltage - Supply: 9.5V ~ 28V
  • Voltage - Load: 9.5V ~ 28V
  • Operating Temperature: -20°C ~ 80°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 48-SSOP (0.311", 7.90mm) Exposed Pad + 2 Heat Tabs
  • Supplier Device Package: 48-HSSOP
  • Base Part Number: LB1187
  • detail: Motor Driver Bipolar PWM 48-HSSOP
