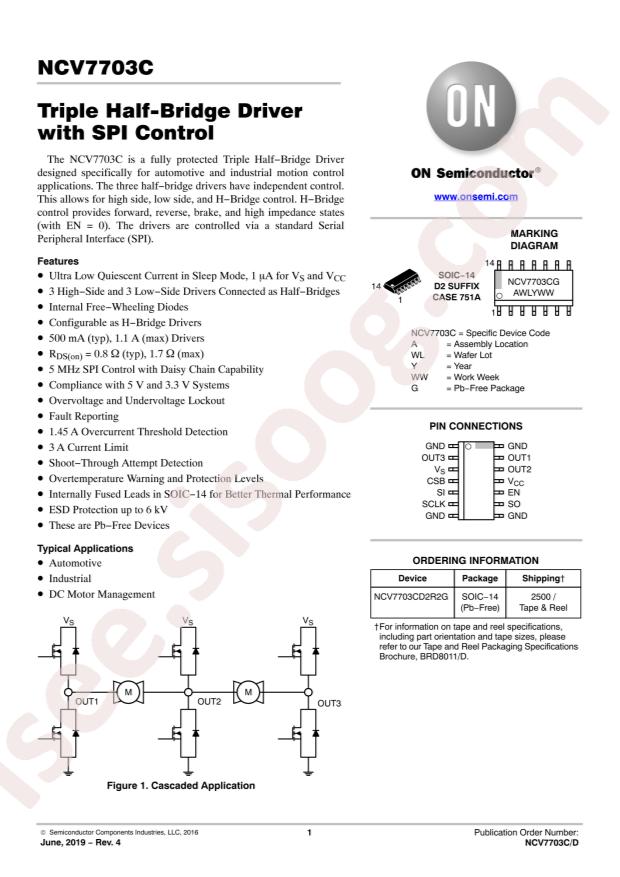

NCV7703CD2R2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV7703CD2R2G
|
|
حجم فایل
|
80.266
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
onsemi NCV7703CD2R2G
-
Load Type:
MOSFET
-
Supply Voltage:
3.15V~5.25V
-
Driven Configuration:
Half Bridge
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Package:
SOP-14
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Half Bridge (3)
-
Applications:
DC Motors, General Purpose
-
Interface:
SPI
-
Technology:
Power MOSFET
-
Rds On (Typ):
800mOhm LS, 800mOhm HS
-
Current - Output / Channel:
1.1A
-
Current - Peak Output:
-
-
Voltage - Supply:
3.15V ~ 5.25V
-
Voltage - Load:
5.5V ~ 40V
-
Features:
-
-
Fault Protection:
Current Limiting, ESD, Over Temperature, Over Voltage, UVLO
-
Mounting Type:
Surface Mount
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
14-SOIC
-
Base Part Number:
NCV7703
-
detail:
Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET 14-SOIC
