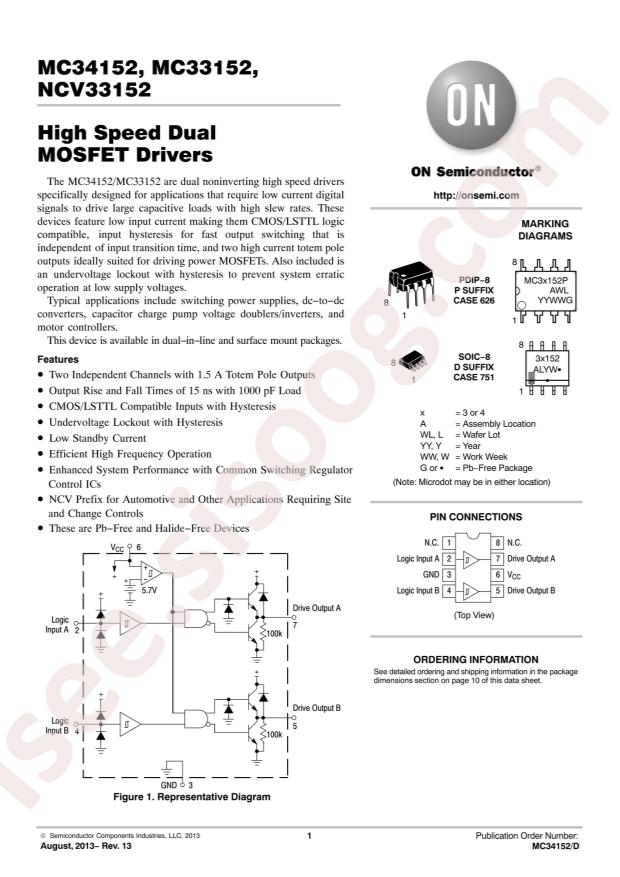

دیتاشیت MC33152DR2G

MC34152, MC33152, NCV33152

مشخصات دیتاشیت

نام دیتاشیت MC34152, MC33152, NCV33152
حجم فایل 174.291 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت MC34152, MC33152, NCV33152

MC34152, MC33152, NCV33152 Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Driven Configuration: Low-Side
  • Channel Type: Independent
  • Number of Drivers: 2
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 6.1V ~ 18V
  • Logic Voltage - VIL, VIH: 0.8V, 2.6V
  • Current - Peak Output (Source, Sink): 1.5A, 1.5A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 36ns, 32ns
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: MC33152
  • detail: Low-Side Gate Driver IC Non-Inverting 8-SOIC
