دیتاشیت NCP565MNADJT2G
مشخصات دیتاشیت
| نام دیتاشیت |
NCP565MNADJT2G
|
| حجم فایل |
77.343
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-

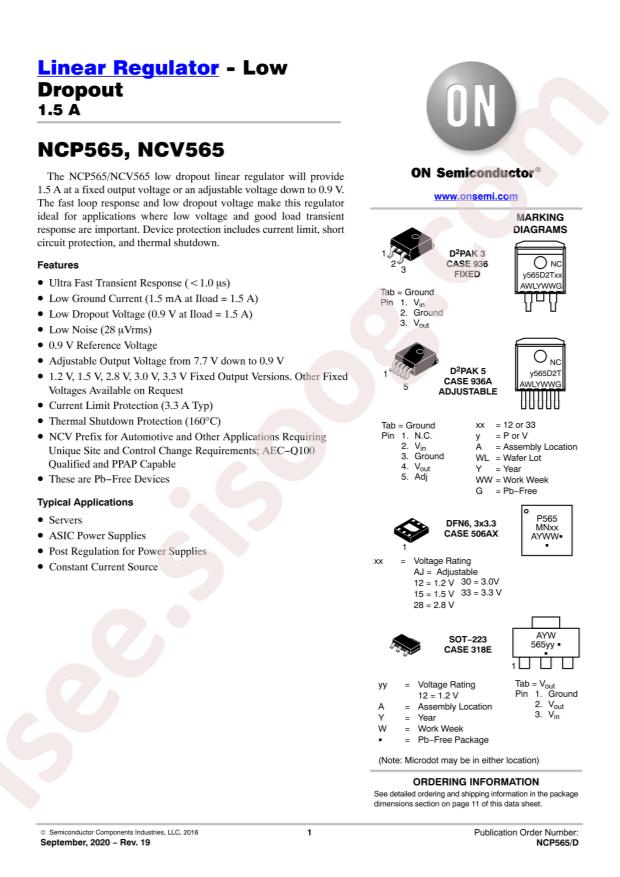

Datasheet:
onsemi NCP565MNADJT2G
-
Package:
DFN-6(3x3.3)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Adjustable
-
Number of Regulators:
1
-
Voltage - Input (Max):
9V
-
Voltage - Output (Min/Fixed):
0.9V
-
Voltage - Output (Max):
7.7V
-
Voltage Dropout (Max):
1.3V @ 1.5A
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
3mA
-
PSRR:
85dB ~ 75db (120Hz ~ 1kHz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
6-VDFN Exposed Pad
-
Supplier Device Package:
6-DFN (3x3)
-
Base Part Number:
NCP565
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A 6-DFN (3x3)
