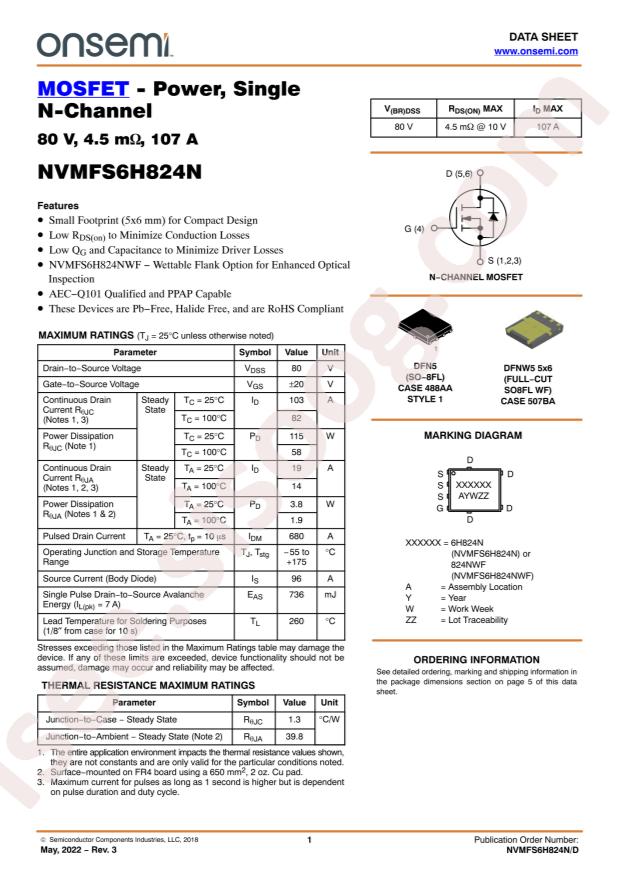

NVMFS6H824NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFS6H824NT1G
|
|
حجم فایل
|
96.104
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFS6H824NT1G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
115W
-
Total Gate Charge (Qg@Vgs):
38nC@10V
-
Drain Source Voltage (Vdss):
80V
-
Input Capacitance (Ciss@Vds):
2.47nF@40V
-
Continuous Drain Current (Id):
103A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@140uA
-
Reverse Transfer Capacitance (Crss@Vds):
11pF@40V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.7mΩ@10V,20A
-
Package:
DFN-5(5.9x4.9)
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
80V
-
Current - Continuous Drain (Id) @ 25°C:
19A (Ta), 103A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
4.5mOhm @ 20A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 140µA
-
Gate Charge (Qg) (Max) @ Vgs:
38nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2470pF @ 40V
-
FET Feature:
-
-
Power Dissipation (Max):
3.8W (Ta), 115W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN, 5 Leads
-
Base Part Number:
NVMFS6
-
detail:
N-Channel 80V 19A (Ta), 103A (Tc) 3.8W (Ta), 115W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
