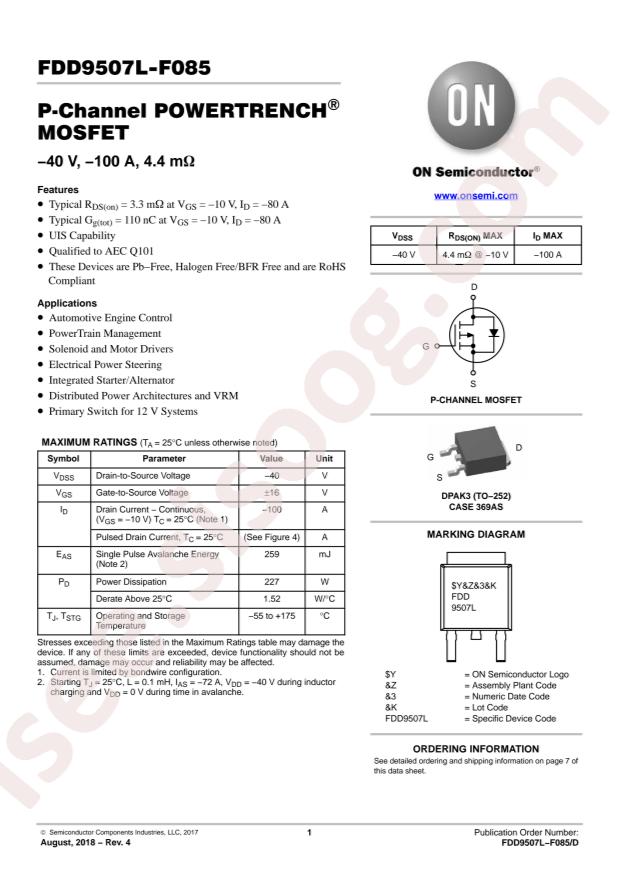

دیتاشیت FDD9507L-F085
مشخصات دیتاشیت
| نام دیتاشیت |
FDD9507L-F085
|
| حجم فایل |
289.824
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDD9507L-F085
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
227W
-
Total Gate Charge (Qg@Vgs):
130nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
6250pF@20V
-
Continuous Drain Current (Id):
100A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4.4mΩ@80A,10V
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
100A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
4.4mOhm @ 80A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
130nC @ 10V
-
Vgs (Max):
±16V
-
Input Capacitance (Ciss) (Max) @ Vds:
6250pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
227W (Ta)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D-PAK (TO-252)
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
FDD950
-
detail:
P-Channel 40V 100A (Tc) 227W (Ta) Surface Mount D-PAK (TO-252)
