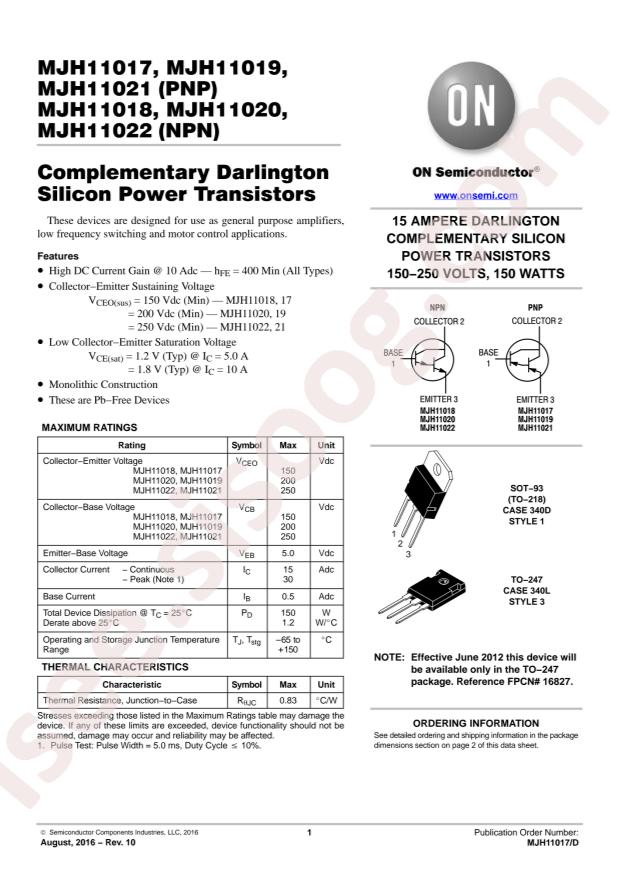

MJH11022G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MJH11022G
|
|
حجم فایل
|
90.254
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
onsemi MJH11022G
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
15A
-
Power Dissipation (Pd):
150W
-
Transition frequency (fT):
3MHz
-
DC current gain (hFE@Vce,Ic):
400@5V,10A
-
Collector-emitter voltage (Vceo):
250V
-
Collector cut-off current (Icbo@Vcb):
1mA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
4V@15A,150mA
-
Package:
TO-247
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
15A
-
Voltage - Collector Emitter Breakdown (Max):
250V
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 150mA, 15A
-
Current - Collector Cutoff (Max):
1mA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
400 @ 10A, 5V
-
Power - Max:
150W
-
Frequency - Transition:
3MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-218-3
-
Supplier Device Package:
SOT-93
-
Base Part Number:
MJH11
-
detail:
Bipolar (BJT) Transistor NPN - Darlington 250V 15A 3MHz 150W Through Hole SOT-93
