دیتاشیت FDP075N15A-F102
مشخصات دیتاشیت
| نام دیتاشیت | FDP075N15A_F102/FDB075N15A |
|---|---|
| حجم فایل | 1745.06 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت FDP075N15A_F102/FDB075N15A |

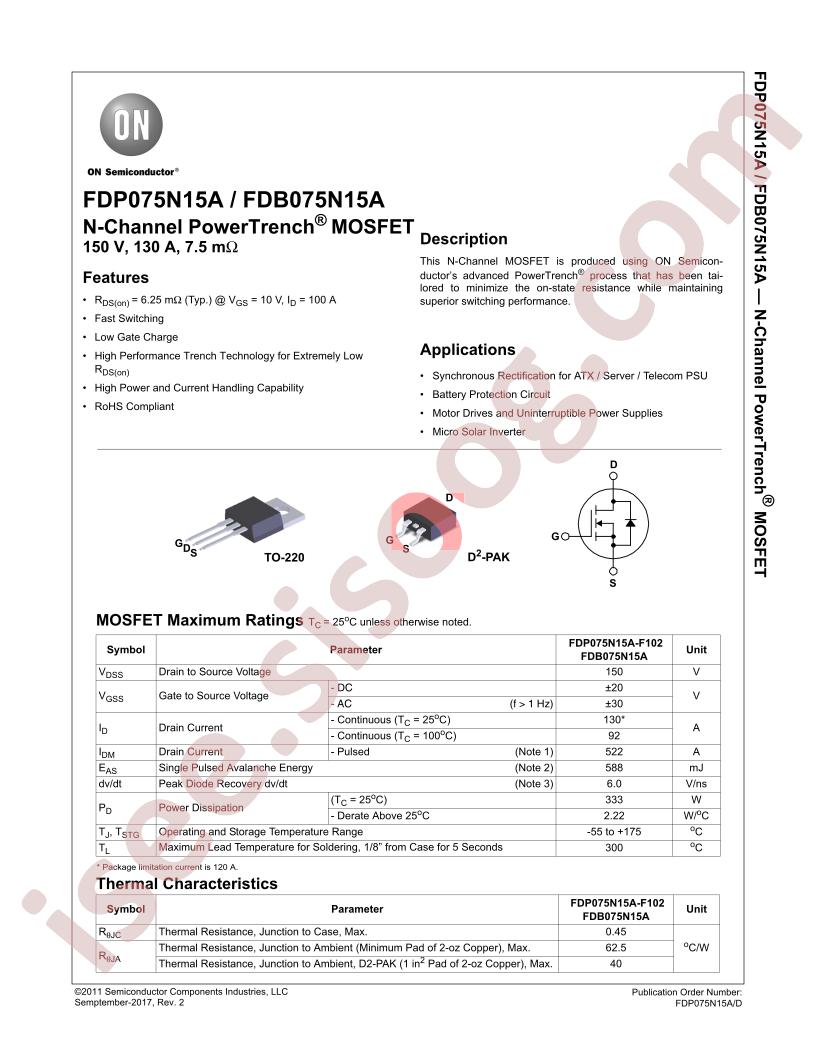

FDP075N15A_F102/FDB075N15A Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi FDP075N15A-F102
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 333W
- Total Gate Charge (Qg@Vgs): 100nC@10V
- Drain Source Voltage (Vdss): 150V
- Input Capacitance (Ciss@Vds): 7350pF@75V
- Continuous Drain Current (Id): 130A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): 7.5mΩ@100A,10V
- Package: TO-220
- Manufacturer: onsemi
- Series: PowerTrench®
- Packaging: Tube
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150V
- Current - Continuous Drain (Id) @ 25°C: 130A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 100nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7350pF @ 75V
- FET Feature: -
- Power Dissipation (Max): 333W (Tc)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
- Base Part Number: FDP075
- detail: N-Channel 150V 130A (Tc) 333W (Tc) Through Hole TO-220-3
