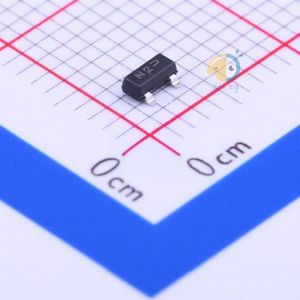

MGSF1N02LT1G دیتاشیت

MGSF1N02LT1G

مشخصات دیتاشیت

نام دیتاشیت MGSF1N02LT1G
حجم فایل 86.801 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

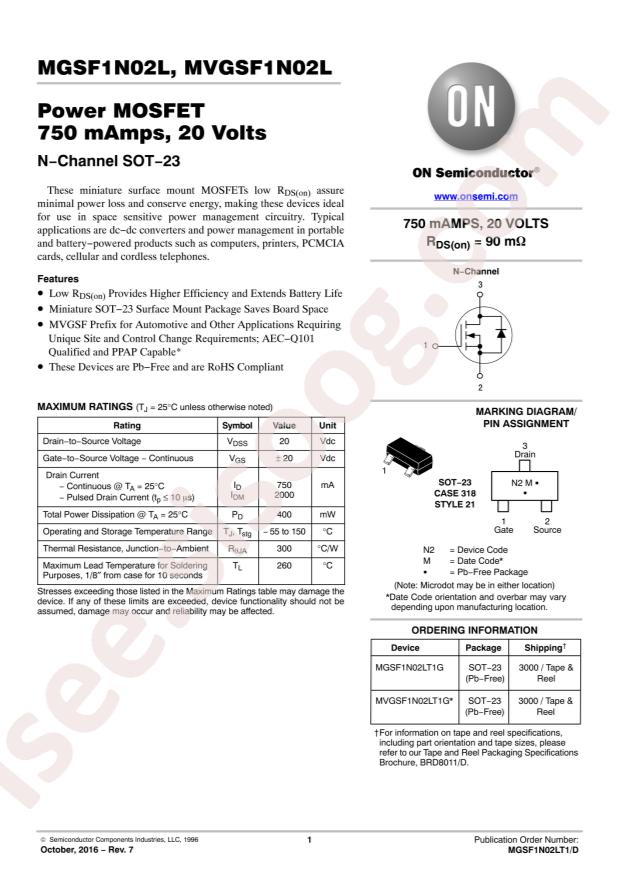

مشاهده دیتاشیت MGSF1N02LT1G

دانلود دیتاشیت

سایر مستندات

MGSF1N02L, MVGSF1N02L 4 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi MGSF1N02LT1G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 400mW
  • Drain Source Voltage (Vdss): 20V
  • Input Capacitance (Ciss@Vds): 125pF@5V
  • Continuous Drain Current (Id): 750mA
  • Gate Threshold Voltage (Vgs(th)@Id): 2.4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 90mΩ@10V,1.2A
  • Package: SOT-23-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 750mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 90mOhm @ 1.2A, 10V
  • Vgs(th) (Max) @ Id: 2.4V @ 250µA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 125pF @ 5V
  • FET Feature: -
  • Power Dissipation (Max): 400mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: MGSF1
  • detail: N-Channel 20V 750mA (Ta) 400mW (Ta) Surface Mount SOT-23-3 (TO-236)
