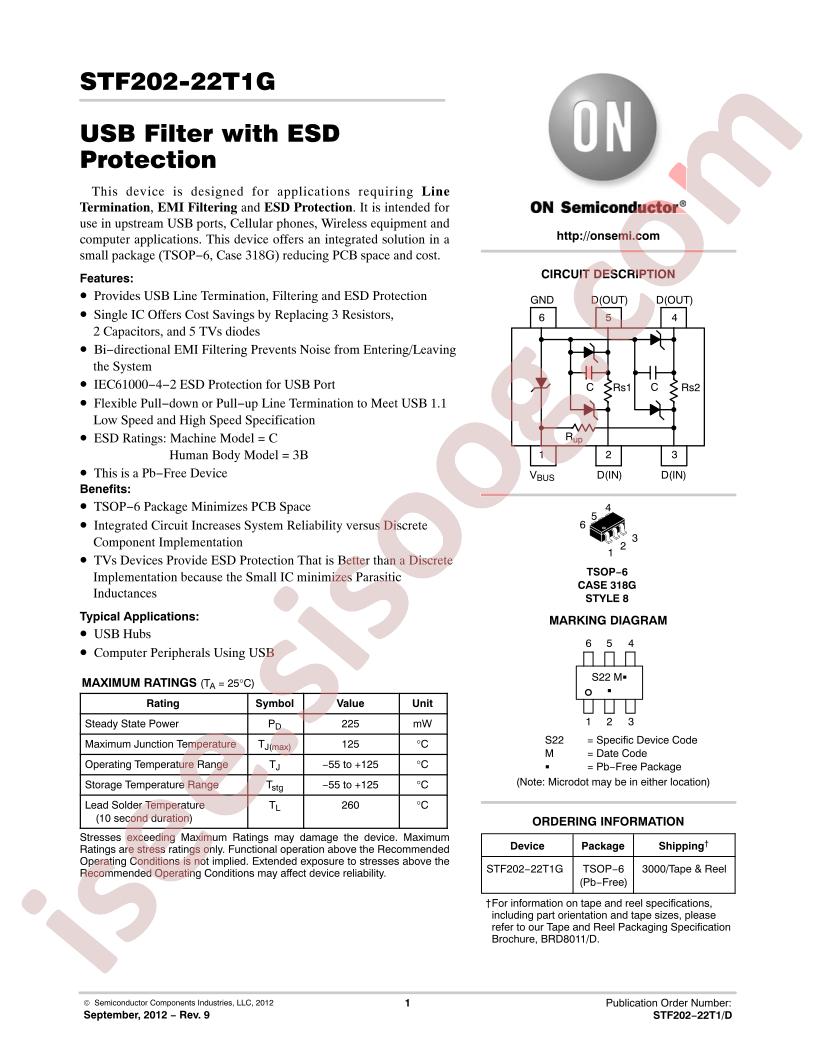

دیتاشیت STF202-22T1G
مشخصات دیتاشیت
| نام دیتاشیت |
STF202-22
|
| حجم فایل |
121.935
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
STF202-22
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Type:
Low Pass
-
Filter Order:
2nd
-
Technology:
RC (Pi)
-
Number of Channels:
2
-
Center / Cutoff Frequency:
-
-
Attenuation Value:
-
-
Resistance - Channel (Ohms):
22
-
Values:
R = 22Ohms, C = 68pF
-
ESD Protection:
Yes
-
Operating Temperature:
-55°C ~ 125°C
-
Applications:
USB
-
Voltage - Rated:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74, SOT-457
-
Size / Dimension:
0.118" L x 0.059" W (3.00mm x 1.50mm)
-
Height:
0.043" (1.09mm)
-
Base Part Number:
STF202
-
detail:
RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 22Ohms, C = 68pF SC-74, SOT-457
