دیتاشیت NCP698SQ15T1G

NCP698

مشخصات دیتاشیت

نام دیتاشیت NCP698
حجم فایل 139.008 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

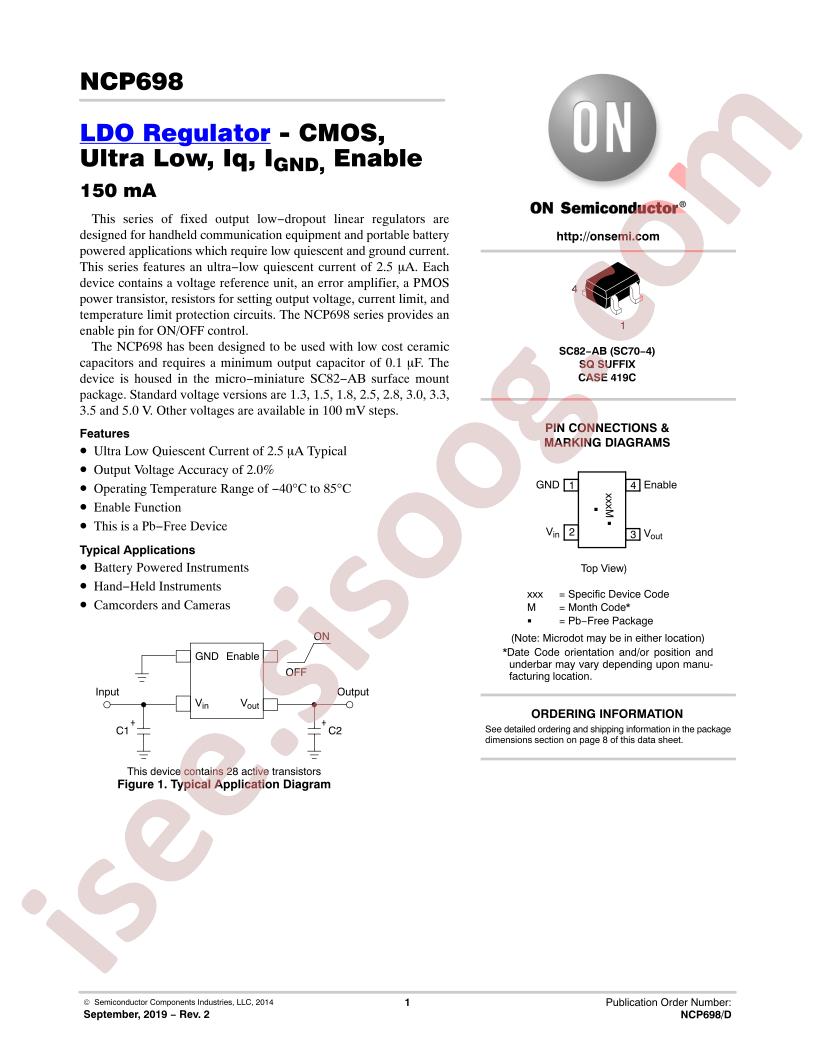

دانلود دیتاشیت NCP698

NCP698 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCP698SQ15T1G
  • Output Current: 150mA
  • Output Voltage: 1.5V
  • Dropout Voltage: 1.07V@(150mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 6V
  • Operating Temperature: -40°C~+85°C
  • Quiescent Current (Ground Current): 6uA
  • Package: SC-82AB
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 6V
  • Voltage - Output (Min/Fixed): 1.5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 1.07V @ 150mA
  • Current - Output: 150mA
  • Current - Quiescent (Iq): 6µA
  • PSRR: -
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: SC-82A, SOT-343
  • Supplier Device Package: SC-82AB
  • Base Part Number: NCP698
  • detail: Linear Voltage Regulator IC 1 Output 150mA SC-82AB
