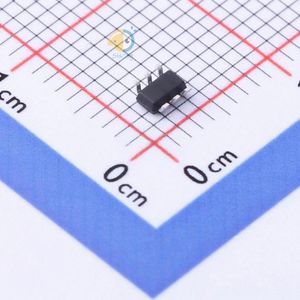

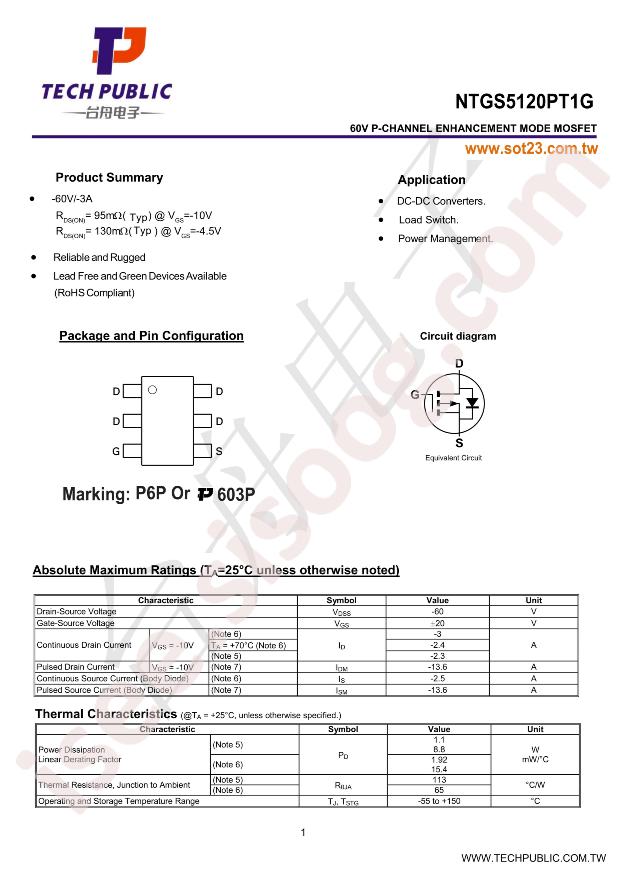

NTGS5120PT1G دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NTGS5120PT1G |
|---|---|
| حجم فایل | 73.65 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت NTGS5120PT1G |
دانلود دیتاشیت |
|---|
سایر مستندات
NTGS5120P, NVGS5120P 6 pages
NTGS5120PT1G 6 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: TECH PUBLIC NTGS5120PT1G
- Package: SOT-23-6
- Manufacturer: TECH PUBLIC
- Type: P Channel
- Power Dissipation (Pd): 600mW
- Drain Source Voltage (Vdss): 60V
- Continuous Drain Current (Id): 1.8A
- Gate Threshold Voltage (Vgs(th)@Id): 3V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 111mΩ@10V,2.9A
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 1.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 111mOhm @ 2.9A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18.1nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 942pF @ 30V
- FET Feature: -
- Power Dissipation (Max): 600mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TSOP
- Package / Case: SOT-23-6
- Base Part Number: NTGS51
- detail: P-Channel 60V 1.8A (Ta) 600mW (Ta) Surface Mount 6-TSOP
