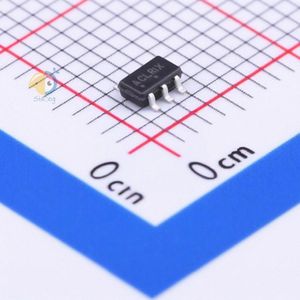

دیتاشیت NCP603SNADJT1G
مشخصات دیتاشیت
| نام دیتاشیت |
NCP603
|
| حجم فایل |
169.992
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP603SNADJT1G
-
Output Type:
Adjustable
-
Output Current:
300mA
-
Output Voltage:
1.25V~5V
-
Dropout Voltage:
480mV@(300mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Power Supply Rejection Ratio (PSRR):
62dB@(120Hz),38dB@(10kHz)
-
Package:
TSOP-5-1.5mm
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
1.25V
-
Voltage - Output (Max):
5V
-
Voltage Dropout (Max):
0.48V @ 300mA
-
Current - Output:
300mA
-
Current - Quiescent (Iq):
180µA
-
PSRR:
62dB ~ 38dB (120Hz ~ 10kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Transient Voltage
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-5 Thin, TSOT-23-5
-
Supplier Device Package:
5-TSOP
-
Base Part Number:
NCP603
-
detail:
Linear Voltage Regulator IC 1 Output 300mA 5-TSOP
