دیتاشیت LM2574N-ADJG

LM2574, NCV2574  Series

مشخصات دیتاشیت

نام دیتاشیت LM2574, NCV2574 Series
حجم فایل 302.312 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

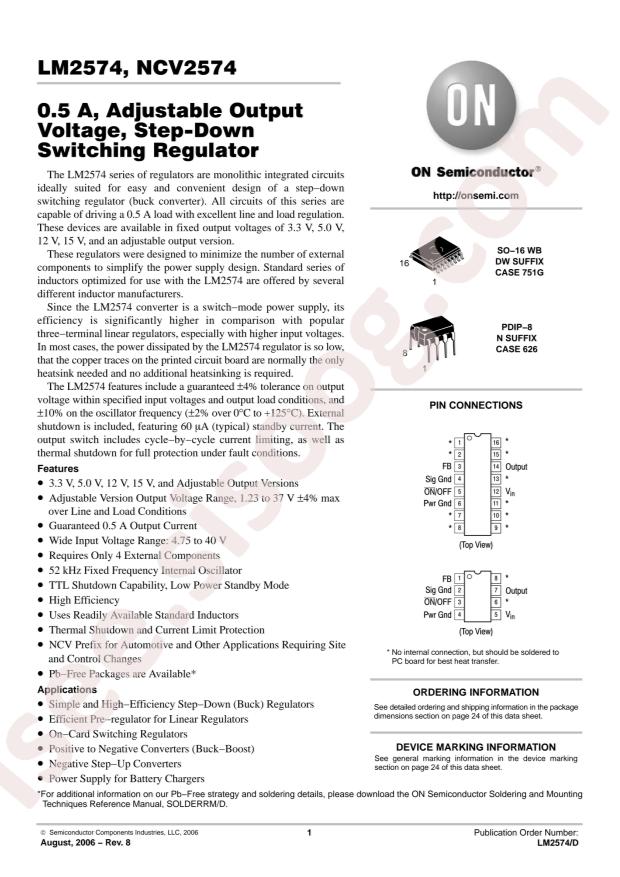

دانلود دیتاشیت LM2574, NCV2574 Series

LM2574, NCV2574 Series Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: boost converterType;Step-down type;Buck-boost type
  • Topology: Step-down;Boost;Step-down-Boost
  • Datasheet: onsemi LM2574N-ADJG
  • Output Type: Adjustable
  • Input Voltage: 4.75V~40V
  • Output Voltage: 1.23V~37V
  • Number of Outputs: 1
  • Switching Frequency: 52kHz
  • Output Current (Max): 500mA
  • Operating Temperature: -40°C~+125°C@(TJ)
  • Synchronous Rectification: NO
  • Package: DIP-8
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Configuration: Positive or Negative
  • Voltage - Input (Min): 4.75V
  • Voltage - Input (Max): 40V
  • Voltage - Output (Min/Fixed): 1.23V
  • Voltage - Output (Max): 37V
  • Current - Output: 500mA
  • Frequency - Switching: 52kHz
  • Synchronous Rectifier: No
  • Mounting Type: Through Hole
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-PDIP
  • Base Part Number: LM2574
  • detail: Buck, Boost, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1.23V 1 Output 500mA 8-DIP (0.300", 7.62mm)
