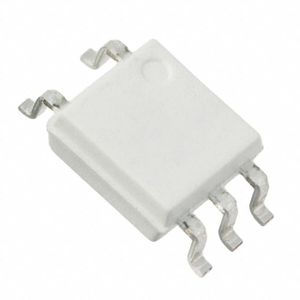

FODM611R2 دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت FODM611	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Number of Channels: 1
Inputs - Side 1/Side 2: 1/0
Voltage - Isolation: 3750Vrms
Common Mode Transient Immunity (Min): 20kV/µs
Input Type: DC
Output Type: Open Collector, Schottky Clamped
Current - Output / Channel: 50mA
Data Rate: 10Mbps
Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
Rise / Fall Time (Typ): 20ns, 10ns
Voltage - Forward (Vf) (Typ): 1.45V
Current - DC Forward (If) (Max): 50mA
Voltage - Supply: 4.5V ~ 5.5V
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package: 5-Mini-Flat
Base Part Number: FODM61
detail: Logic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 1 Channel 20kV/µs CMTI 5-Mini-Flat
