FPF2701MPX دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
FPF2701MPX
|
|
حجم فایل
|
106.715
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
19
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Power Distribution Switches
-
Datasheet:
onsemi FPF2701MPX
-

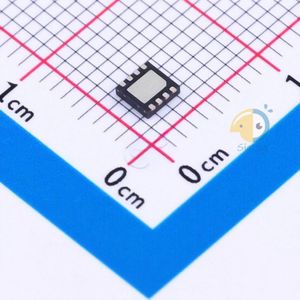

Package:
MLP-8(3x3)
-
Manufacturer:
onsemi
-
Series:
AccuPower™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Switch Type:
General Purpose
-
Number of Outputs:
1
-
Ratio - Input:Output:
1:1
-
Output Configuration:
High Side
-
Output Type:
N-Channel
-
Interface:
On/Off
-
Voltage - Load:
2.8V ~ 36V
-
Voltage - Supply (Vcc/Vdd):
Not Required
-
Current - Output (Max):
2A
-
Rds On (Typ):
88mOhm
-
Input Type:
Non-Inverting
-
Features:
Power Good, Slew Rate Controlled, Status Flag
-
Fault Protection:
Current Limiting (Adjustable), Over Temperature, UVLO
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-MLP (3x3)
-
Package / Case:
8-WDFN Exposed Pad
-
Base Part Number:
FPF2
-
detail:
Power Switch/Driver 1:1 N-Channel 2A 8-MLP (3x3)
