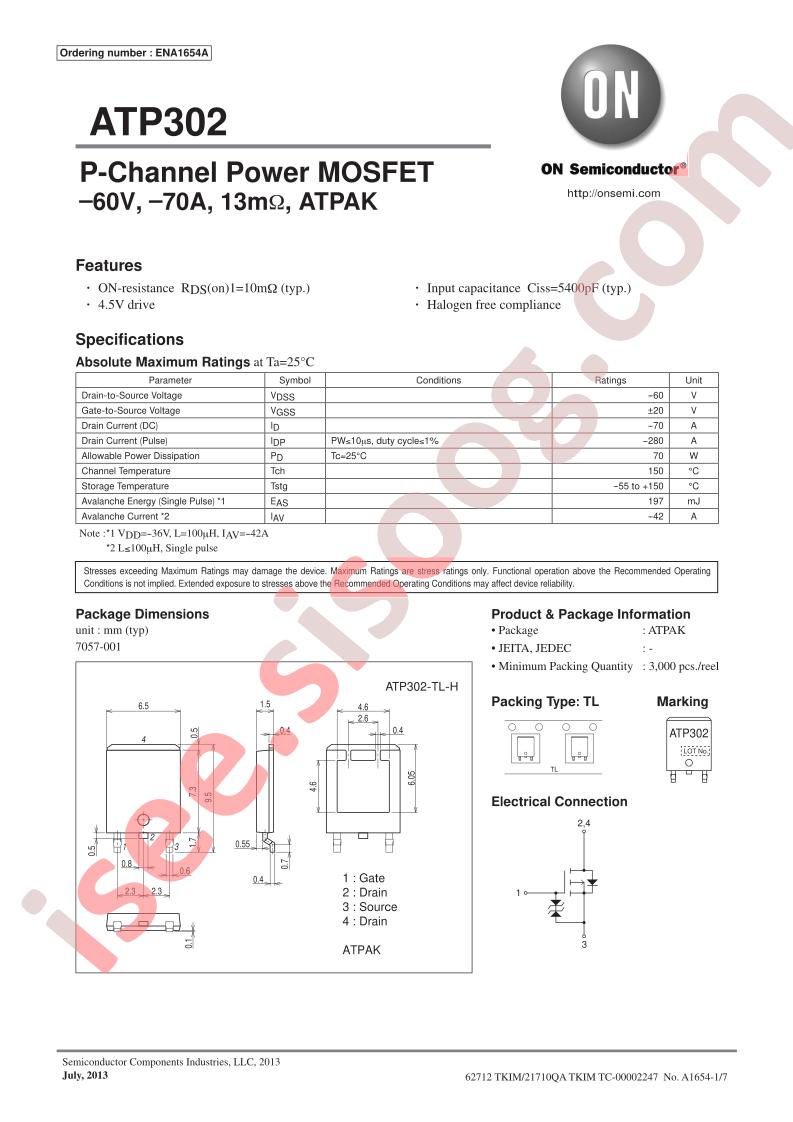

ATP302-TL-H Datasheet
Datasheet specifications
| Datasheet's name | ATP302 |
|---|---|
| File size | 363.959 KB |
| File type | |
| Number of pages | 7 |
Download Datasheet ATP302 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Type: P Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi ATP302-TL-H
- Power Dissipation (Pd): 70W
- Drain Source Voltage (Vdss): 60V
- Continuous Drain Current (Id): 70A
- Gate Threshold Voltage (Vgs(th)@Id): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): 13mΩ@10V,35A
- Package: -
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 70A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 13mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 115nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5400pF @ 20V
- FET Feature: -
- Power Dissipation (Max): 70W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: ATPAK (2 leads+tab)
- Base Part Number: ATP302
- detail: P-Channel 60V 70A (Ta) 70W (Tc) Surface Mount ATPAK
