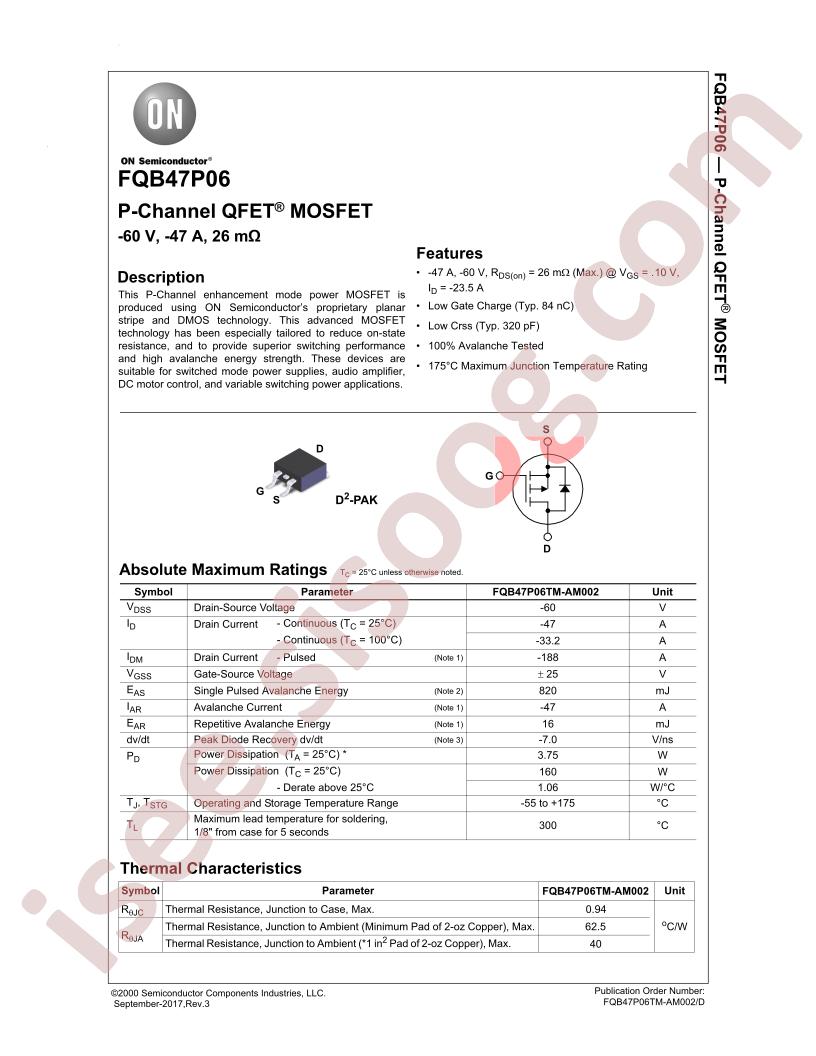

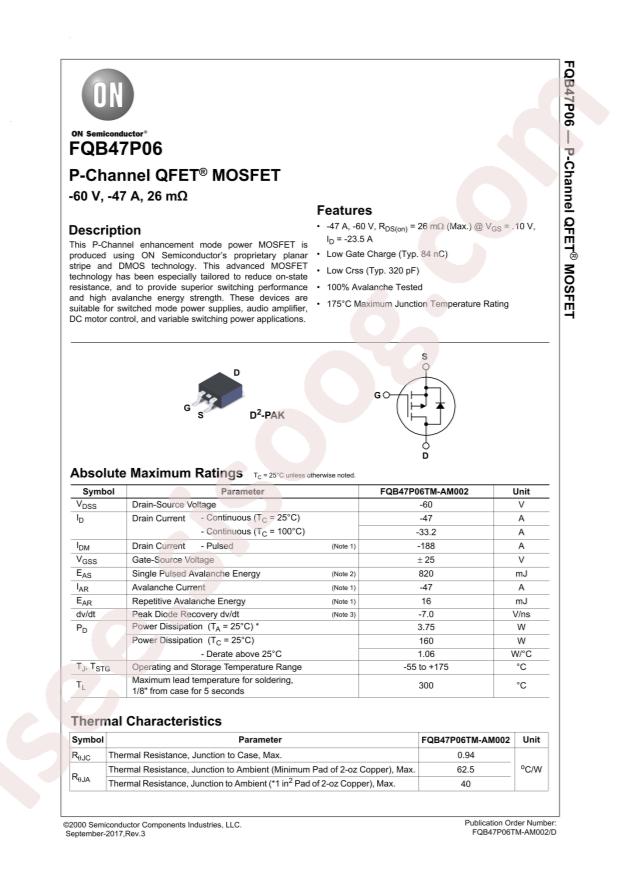

دیتاشیت FQB47P06TM-AM002
مشخصات دیتاشیت
| نام دیتاشیت |
FQB47P06
|
| حجم فایل |
1168.369
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FQB47P06TM-AM002
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3.75W;160W
-
Total Gate Charge (Qg@Vgs):
110nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
3600pF@25V
-
Continuous Drain Current (Id):
47A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
26mΩ@10V,23.5A
-
Package:
TO-263-3
-
Manufacturer:
onsemi
-
Series:
QFET®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
P-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
47A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
26mOhm @ 23.5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
110nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
3600pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.75W (Ta), 160W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D²PAK (TO-263AB)
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
FQB4
-
detail:
P-Channel 60V 47A (Tc) 3.75W (Ta), 160W (Tc) Surface Mount D²PAK (TO-263AB)
