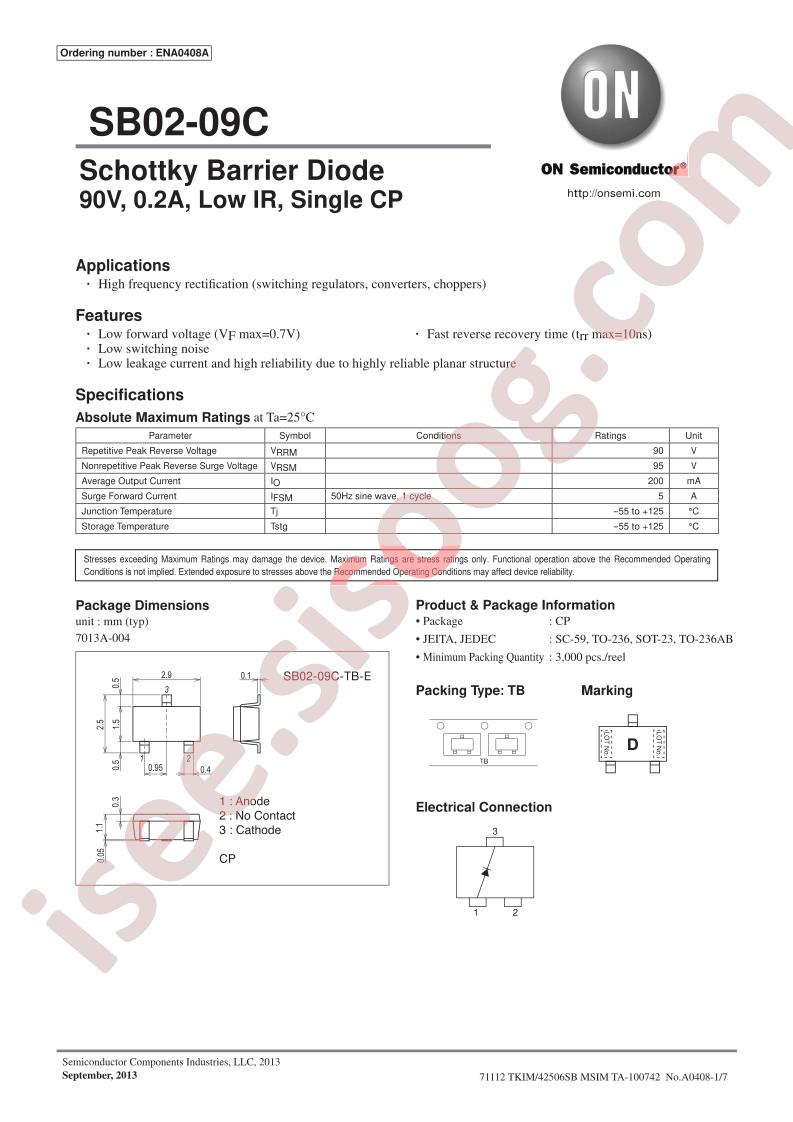

دیتاشیت SB02-09C-TB-E
مشخصات دیتاشیت
| نام دیتاشیت |
SB02-09C
|
| حجم فایل |
315.106
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi SB02-09C-TB-E
-
Reverse Voltage (Vr):
90V
-
Forward Voltage (Vf@If):
700mV@200mA
-
Reverse Leakage Current (Ir):
50uA@45V
-
Average Rectified Current (Io):
200mA
-
Package:
-
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
90V
-
Current - Average Rectified (Io):
200mA
-
Voltage - Forward (Vf) (Max) @ If:
700mV @ 200mA
-
Speed:
Small Signal =< 200mA (Io), Any Speed
-
Reverse Recovery Time (trr):
10ns
-
Current - Reverse Leakage @ Vr:
50µA @ 45V
-
Capacitance @ Vr, F:
10pF @ 10V, 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-236-3, SC-59, SOT-23-3
-
Supplier Device Package:
3-CP
-
Operating Temperature - Junction:
-55°C ~ 125°C
-
Base Part Number:
SB02
-
detail:
Diode Schottky 90V 200mA Surface Mount 3-CP
