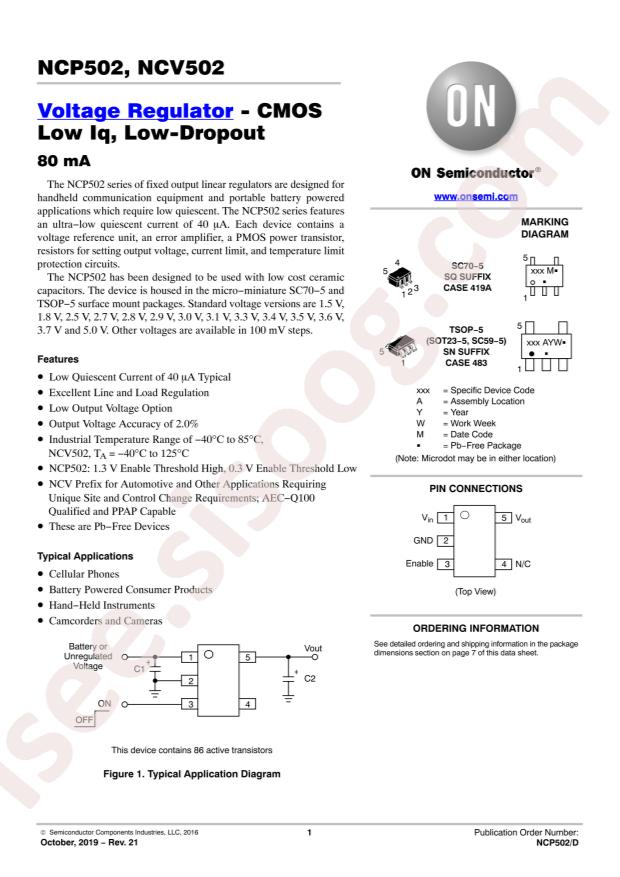

NCP502SQ33T2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCP502SQ33T2G
|
|
حجم فایل
|
80.182
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCP502SQ33T2G
-
Output Current:
80mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
1.2V@(80mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
12V
-
Operating Temperature:
-40°C~+85°C
-
Quiescent Current (Ground Current):
40uA
-
Power Supply Rejection Ratio (PSRR):
55dB@(1kHz)
-
Package:
SC-70-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
12V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
1.2V @ 80mA
-
Current - Output:
80mA
-
Current - Quiescent (Iq):
1µA
-
Current - Supply (Max):
90µA
-
PSRR:
55dB (1kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Supplier Device Package:
SC-88A (SC-70-5/SOT-353)
-
Base Part Number:
NCP502
-
detail:
Linear Voltage Regulator IC 1 Output 80mA SC-88A (SC-70-5/SOT-353)
