- PCP1203

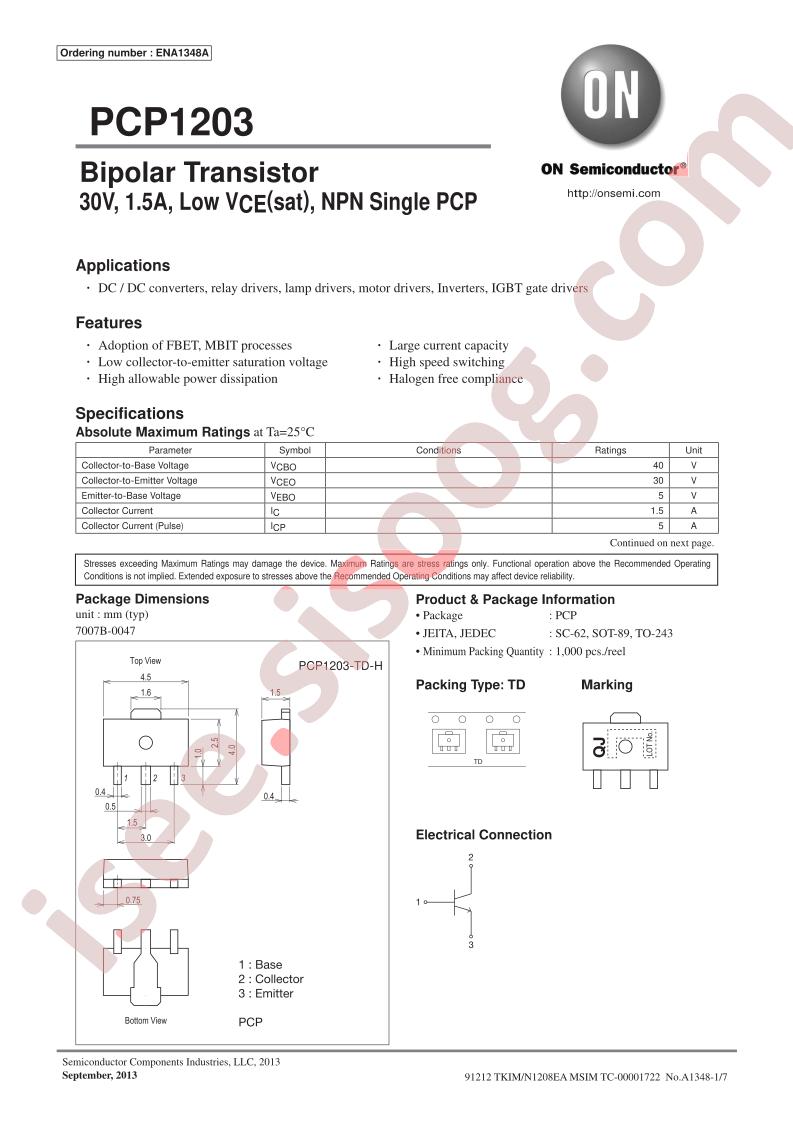

PCP1203-TD-H Datasheet
Datasheet specifications
| Datasheet's name | PCP1203 |
|---|---|
| File size | 382.255 KB |
| File type | |
| Number of pages | 7 |
Download Datasheet PCP1203 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: onsemi PCP1203-TD-H
- Transistor Type: NPN
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 1.5A
- Power Dissipation (Pd): 3.5W
- Transition Frequency (fT): 500MHz
- DC Current Gain (hFE@Ic,Vce): 200@100mA,2V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 30V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 150mV@750mA,15mA
- Package: SOT-89-3
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Current - Collector (Ic) (Max): 1.5A
- Voltage - Collector Emitter Breakdown (Max): 30V
- Vce Saturation (Max) @ Ib, Ic: 225mV @ 15mA, 750mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 100mA, 2V
- Power - Max: 1.3W
- Frequency - Transition: 500MHz
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: PCP
- Base Part Number: PCP1203
- detail: Bipolar (BJT) Transistor NPN 30V 1.5A 500MHz 1.3W Surface Mount PCP
