- دیتاشیت NCV6324BMTAATBG
NCV6324BMTAATBG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NCV6324BMTAATBG |
|---|---|
| حجم فایل | 81.627 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت NCV6324BMTAATBG |
دانلود دیتاشیت |
|---|
سایر مستندات

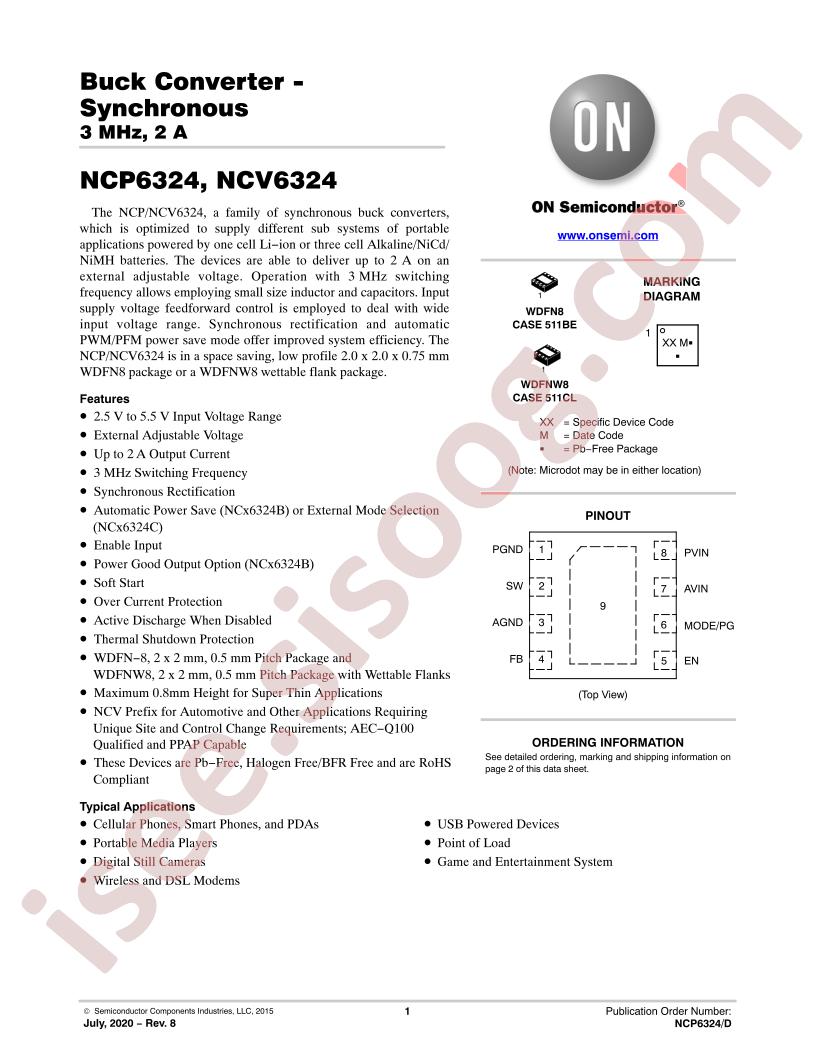

NCP6324, NCV6324 16 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: onsemi NCV6324BMTAATBG
- Output Type: Adjustable
- Input Voltage: 2.5V~5.5V
- Output Voltage: 0.6V~5.5V
- Number of Outputs: 1
- Switching Frequency: 3MHz
- Output Current (Max): 2A
- Operating Temperature: -40°C~+125°C@(TA)
- Synchronous Rectification: Yes
- Package: DFN-8(2x2)
- Manufacturer: onsemi
- Series: Automotive, AEC-Q100
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 2.5V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 0.6V
- Voltage - Output (Max): 5.5V
- Current - Output: 2A
- Frequency - Switching: 3MHz
- Synchronous Rectifier: Yes
- Mounting Type: Surface Mount

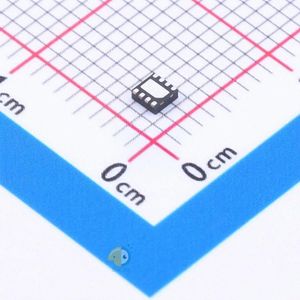

- Package / Case: 8-WFDFN Exposed Pad
- Supplier Device Package: 8-WDFN (2x2)
- Base Part Number: NCV6324
- detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 8-WFDFN Exposed Pad
