MBRF2545CTG دیتاشیت

مشخصات دیتاشیت

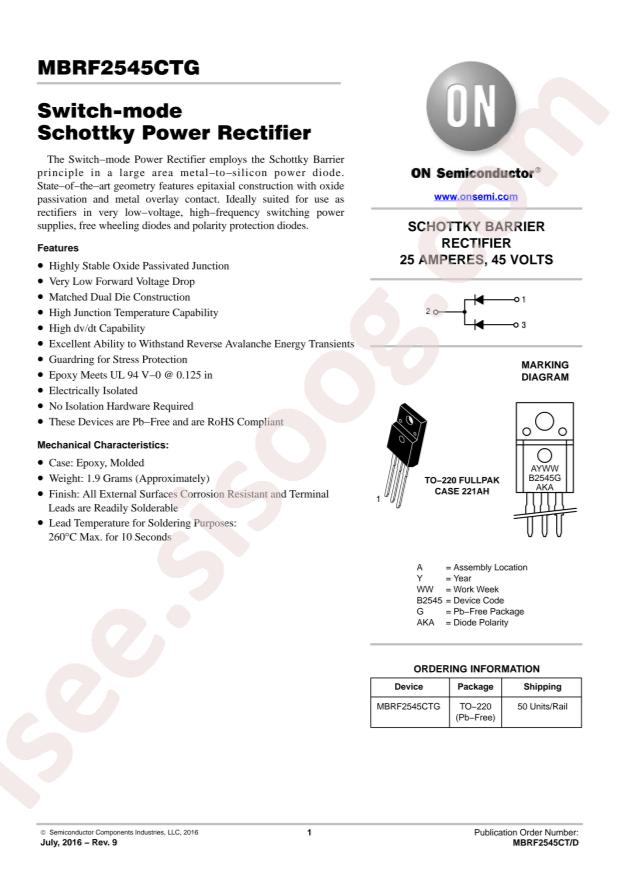

مشاهده دیتاشیت MBRF2545CTG	دانلود دیتاشیت

RoHS: true
Category: Diodes/Schottky Barrier Diodes (SBD)
Datasheet: onsemi MBRF2545CTG
Diode Configuration: Dual Common Cathode
Reverse Voltage (Vr): 45V
Forward Voltage (Vf@If): 700mV@12.5A
Reverse Leakage Current (Ir): 200uA@45V
Average Rectified Current (Io): 12.5A
Package: TO-220F
Manufacturer: onsemi
Series: SWITCHMODE™
Packaging: Tube
Part Status: Obsolete
Diode Type: Schottky
Voltage - DC Reverse (Vr) (Max): 45V
Current - Average Rectified (Io) (per Diode): 12.5A
Voltage - Forward (Vf) (Max) @ If: 700mV @ 12.5A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr: 200µA @ 45V
Operating Temperature - Junction: -65°C ~ 175°C
Mounting Type: Through Hole
Package / Case: TO-220-3 Full Pack
Supplier Device Package: TO-220FP
Base Part Number: MBRF2545
detail: Diode Array 1 Pair Common Cathode Schottky 45V 12.5A Through Hole TO-220-3 Full Pack
