FSGM0465RWDTU دیتاشیت

FSGM0465RWDTU

مشخصات دیتاشیت

نام دیتاشیت FSGM0465RWDTU
حجم فایل 78.146 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

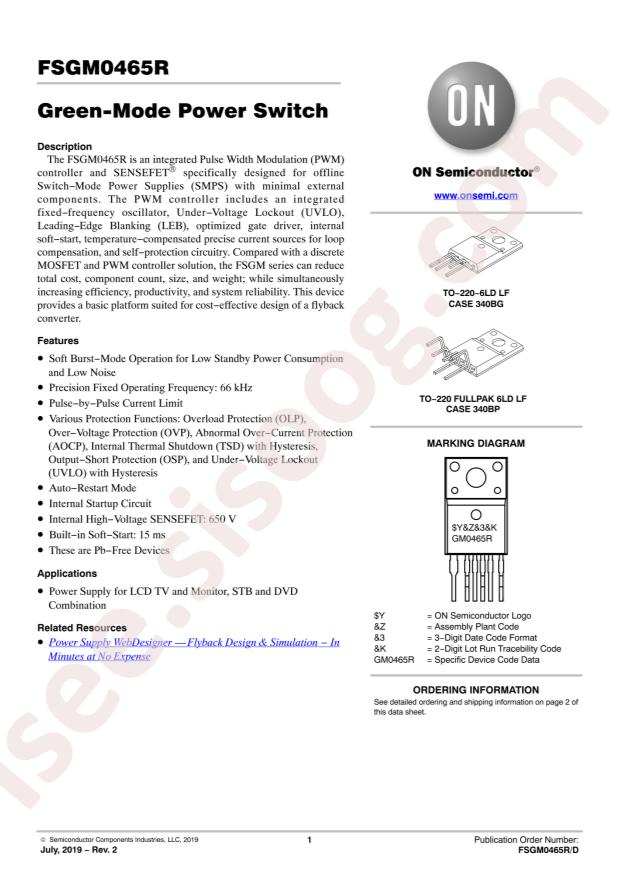

مشاهده دیتاشیت FSGM0465RWDTU

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Datasheet: onsemi FSGM0465RWDTU
  • Package: TO-220-6(Forming)
  • Manufacturer: onsemi
  • Series: FPS™
  • Packaging: Tube
  • Part Status: Active
  • Output Isolation: Isolated
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 650V
  • Topology: Flyback
  • Voltage - Start Up: 12V
  • Voltage - Supply (Vcc/Vdd): 7.5V ~ 26V
  • Duty Cycle: 70%
  • Frequency - Switching: 66kHz
  • Power (Watts): 70W
  • Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
  • Control Features: -
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: TO-220-6 Full Pack, Formed Leads
  • Supplier Device Package: TO-220F-6L (W-Forming)
  • Mounting Type: Through Hole
  • Base Part Number: FSGM04
  • detail: Converter Offline Flyback Topology 66kHz TO-220F-6L (W-Forming)
