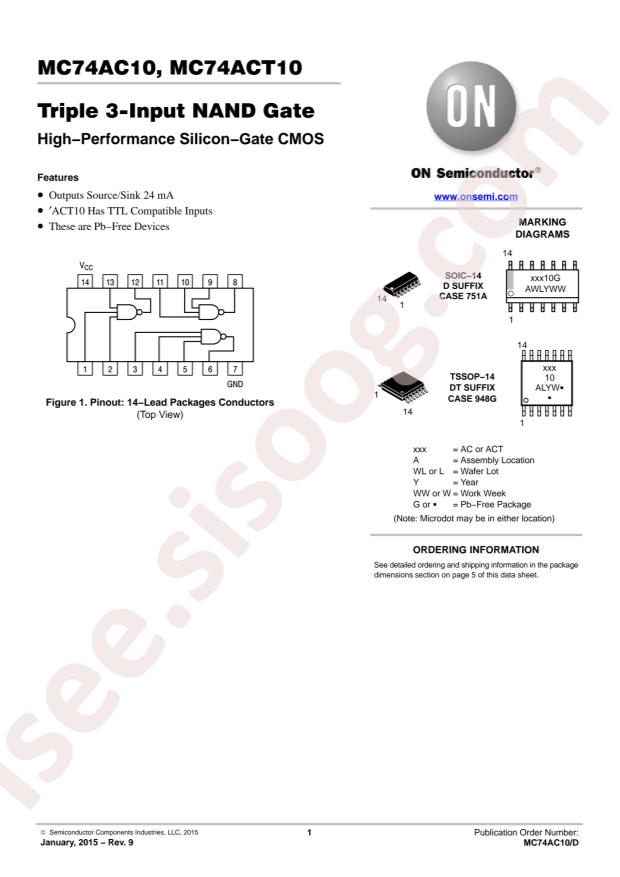

MC74ACT10DR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MC74ACT10DR2G
|
|
حجم فایل
|
49.645
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Series:
74ACT
-
Category:
Logic ICs/Gates
-
Datasheet:
onsemi MC74ACT10DR2G
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
3
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
9ns@5V,50pF
-
Quiescent Current (Max):
4uA
-
Package:
SOIC-14
-
Manufacturer:
onsemi
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
Logic Type:
NAND Gate
-
Number of Circuits:
3
-
Number of Inputs:
3
-
Features:
-
-
Voltage - Supply:
4.5V ~ 5.5V
-
Current - Quiescent (Max):
4µA
-
Current - Output High, Low:
24mA, 24mA
-
Logic Level - Low:
0.8V
-
Logic Level - High:
2V
-
Max Propagation Delay @ V, Max CL:
9ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SOIC
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
MC74ACT10
-
detail:
NAND Gate IC 3 Channel 14-SOIC
