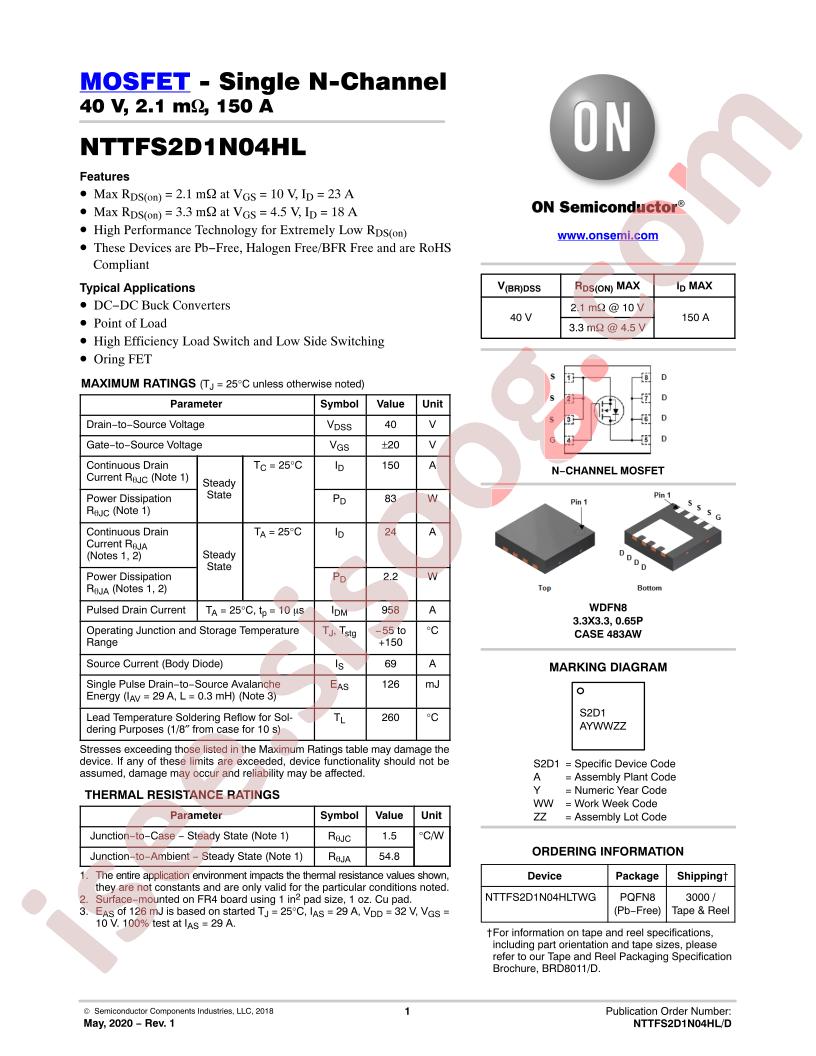

دیتاشیت NTTFS2D1N04HLTWG
مشخصات دیتاشیت
| نام دیتاشیت |
NTTFS2D1N04HL
|
| حجم فایل |
277.578
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTTFS2D1N04HLTWG
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.2W;83W
-
Total Gate Charge (Qg@Vgs):
43.6nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
2745pF@20V
-
Continuous Drain Current (Id):
24A;150A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@120uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
2.1mΩ@23A,10V
-
Package:
PQFN-8(3.3x3.3)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
24A (Ta), 150A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
2.1mOhm @ 23A, 10V
-
Vgs(th) (Max) @ Id:
2V @ 120µA
-
Gate Charge (Qg) (Max) @ Vgs:
43.6nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
2745pF @ 20V
-
FET Feature:
-
-
Power Dissipation (Max):
2.2W (Ta), 83W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-PQFN (3.3x3.3)
-
Package / Case:
8-PowerWDFN
-
detail:
N-Channel 40V 24A (Ta), 150A (Tc) 2.2W (Ta), 83W (Tc) Surface Mount 8-PQFN (3.3x3.3)
