NCV59745AMW180TAG دیتاشیت

NCV59745AMW180TAG

مشخصات دیتاشیت

نام دیتاشیت NCV59745AMW180TAG
حجم فایل 83.144 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

مشاهده دیتاشیت NCV59745AMW180TAG

دانلود دیتاشیت

سایر مستندات

NCV59745 12 pages

مشخصات فنی

  • RoHS: true
  • Feature: enable
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi NCV59745AMW180TAG
  • Output Type: Fixed
  • Output Current: 3A
  • Output Voltage: 1.8V
  • Dropout Voltage: 195mV@(3A)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Quiescent Current (Ground Current): 2mA
  • Power Supply Rejection Ratio (PSRR): 75dB@((1kHz)),18dB@((3MHz))

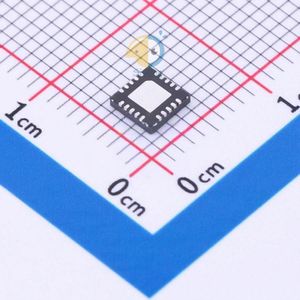

  • Package: QFN-20(4x4)
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q100
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.8V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.195V @ 3A
  • Current - Output: 3A
  • Current - Quiescent (Iq): 2mA
  • PSRR: 75dB ~ 18dB (1kHz ~ 3MHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, UVLO
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount, Wettable Flank
  • Package / Case: 20-VFQFN Exposed Pad
  • Supplier Device Package: 20-QFNW (4x4)
  • detail: Linear Voltage Regulator IC 1 Output 3A 20-QFNW (4x4)
