NCP3284MNTXG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NCP3284MNTXG	دانلود دیتاشیت

NCP3284 13 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: onsemi NCP3284MNTXG
Output Type: Adjustable
Input Voltage: 4.5V~18V
Output Voltage: 0.8V~15.3V
Number of Outputs: 1
Switching Frequency: 500kHz;600kHz;800kHz;1MHz
Output Current (Max): 30A
Operating Temperature: -40°C~+100°C@(TA)
Synchronous Rectification: Yes

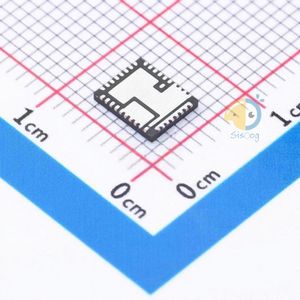

Package: PQFN-37-EP(5x6)
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 18V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 15.3V
Current - Output: 30A
Frequency - Switching: 500kHz, 600kHz, 800kHz, 1MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 37-PowerWFQFN
Supplier Device Package: 37-PQFN (5x6)
Base Part Number: NCP3284
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 30A 37-PowerWFQFN
