NXH50C120L2C2ESG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NXH50C120L2C2ESG	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/IGBTs

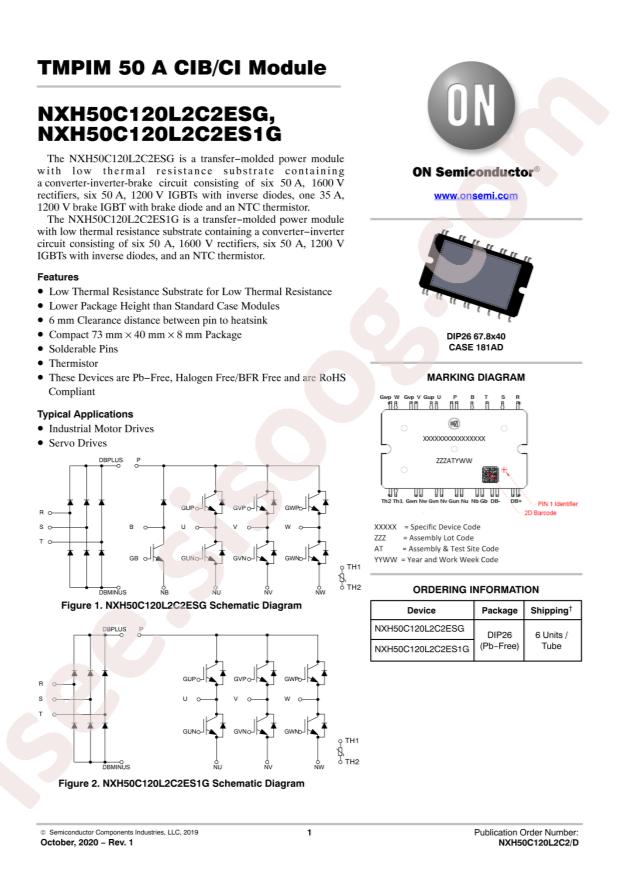

Datasheet: onsemi NXH50C120L2C2ESG
Package: Plugin
Manufacturer: onsemi
Series: -
Packaging: Tube
Part Status: Active
IGBT Type: -
Configuration: Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max): 1200V
Current - Collector (Ic) (Max): 50A
Power - Max: 20mW
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 50A
Current - Collector Cutoff (Max): 250µA
Input Capacitance (Cies) @ Vce: 11.897nF @ 20V
Input: Three Phase Bridge Rectifier
NTC Thermistor: Yes
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: 26-PowerDIP Module (1.199", 47.20mm)
Supplier Device Package: 26-DIP
detail: IGBT Module Three Phase Inverter with Brake 1200V 50A 20mW Through Hole 26-DIP
